TVK machines

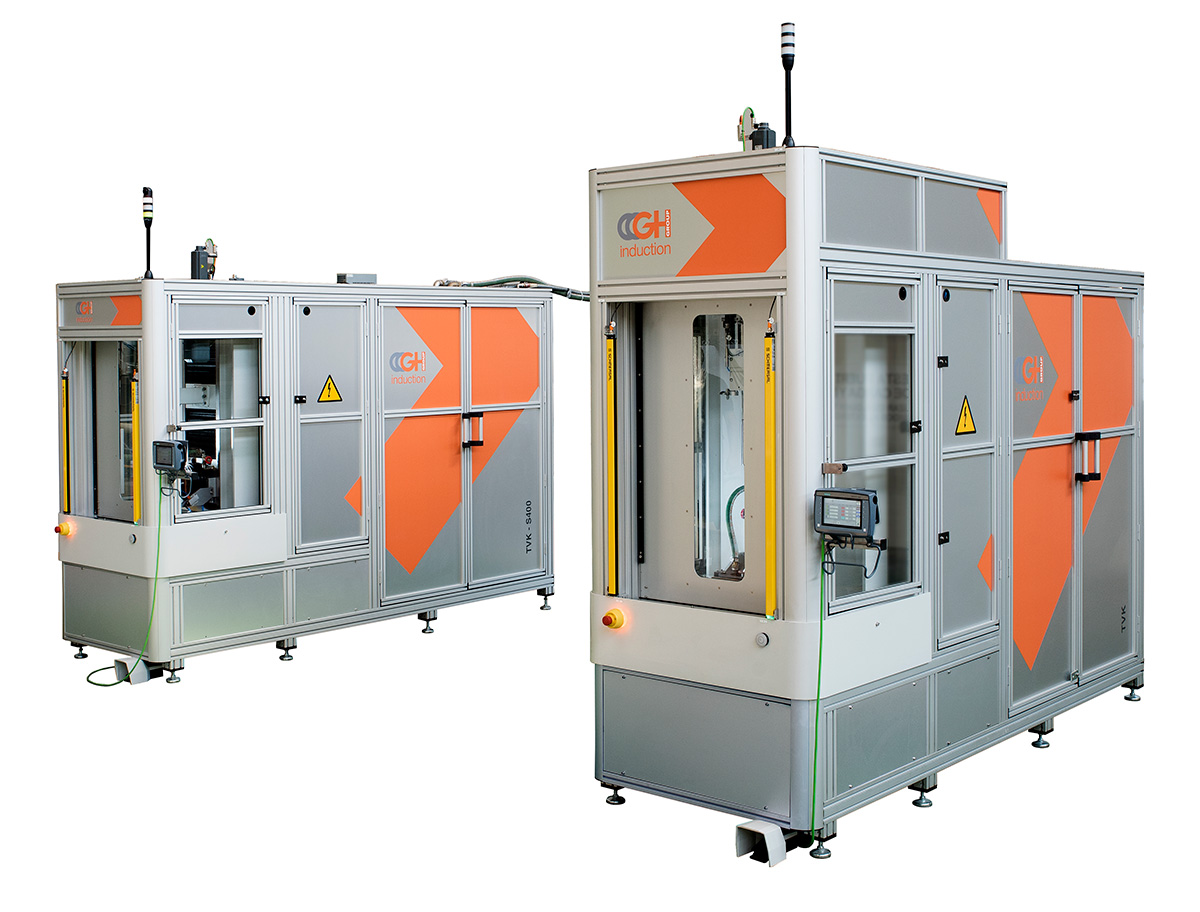

TVK Line
TVK is GH’s range of compact vertical induction machines designed to combine the processing area, control components, power systems and cooling systems in a single integrated unit.
This compact architecture minimises floor space requirements while maintaining sufficient accessibility for operation and maintenance.
The range is organised according to machine frame size and power capacity: TVK-S up to 100 kW, TVK-M up to 200 kW, TVK-L up to 400 kW, as well as double configurations such as TVK-SD up to 100+100 kW and TVK-MD up to 200+50 kW.
Depending on the machine version, the TVK line can process parts up to 400 mm, 800 mm or 1000 mm in length, with a maximum allowable part diameter of 150 mm and standard part weights below 50 kg, with reinforced frame solutions available for heavier components. The TVK line is intended for industrial heat treatment applications requiring compact design, robust construction and reliable machine performance.

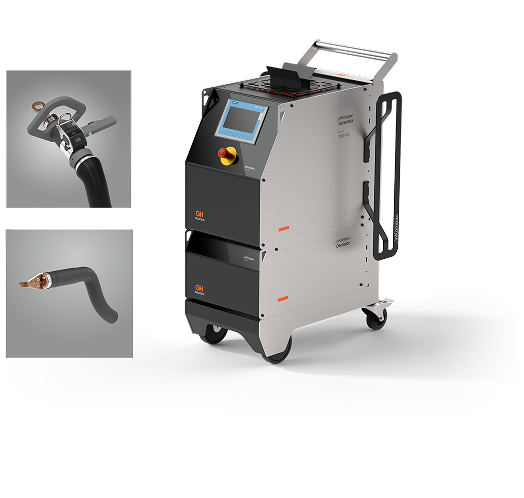

Inkompac Essential

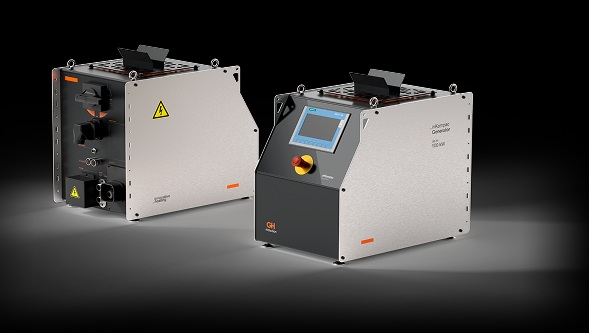

inKompac Essential is GH’s single-output induction generator range for manufacturers looking for a compact, efficient and technically reliable induction solution with a simplified architecture.
The range includes three standard configurations: 15 kW at 10–25 kHz, 25 kW at 10–25 kHz, and 18 kW at 150–250 kHz, covering medium- and high-frequency applications with medium-low power ratings.
Based on GH’s SiC technology and fully digital control, it provides inverter efficiency above 99%, system efficiency up to 95%, series resonant operation, SIEMENS PLC control with 7” touch screen, FPGA and 32-bit ARM-based electronics, and local or remote communication via Profinet.
Typical operations include continuous or discontinuous heating, brazing and soldering, curing, coating and drying, general preheating, mechanical assembly, bonding, and the heating of small parts in narrow spaces, whether in stationary, mobile, manual or integrated production environments.

Control induction pace

The TVK is the line of compact vertical TVK machines.
The processing area, control components, power systems and cooling systems are combined into one single system, which minimizes the surface area required on the ground, with enough space to easily carry out operations and maintenance.
This division depends on the machine frame size:
TVK-S (Small): Up to100KW
TVK-M (Medium): Up to 200KW
TVK-L (Large): Up to 400KW

TVK-SD (Small Double): Up to 100+100KW
TVK-MD (Medium Double): Up to 200+50KW

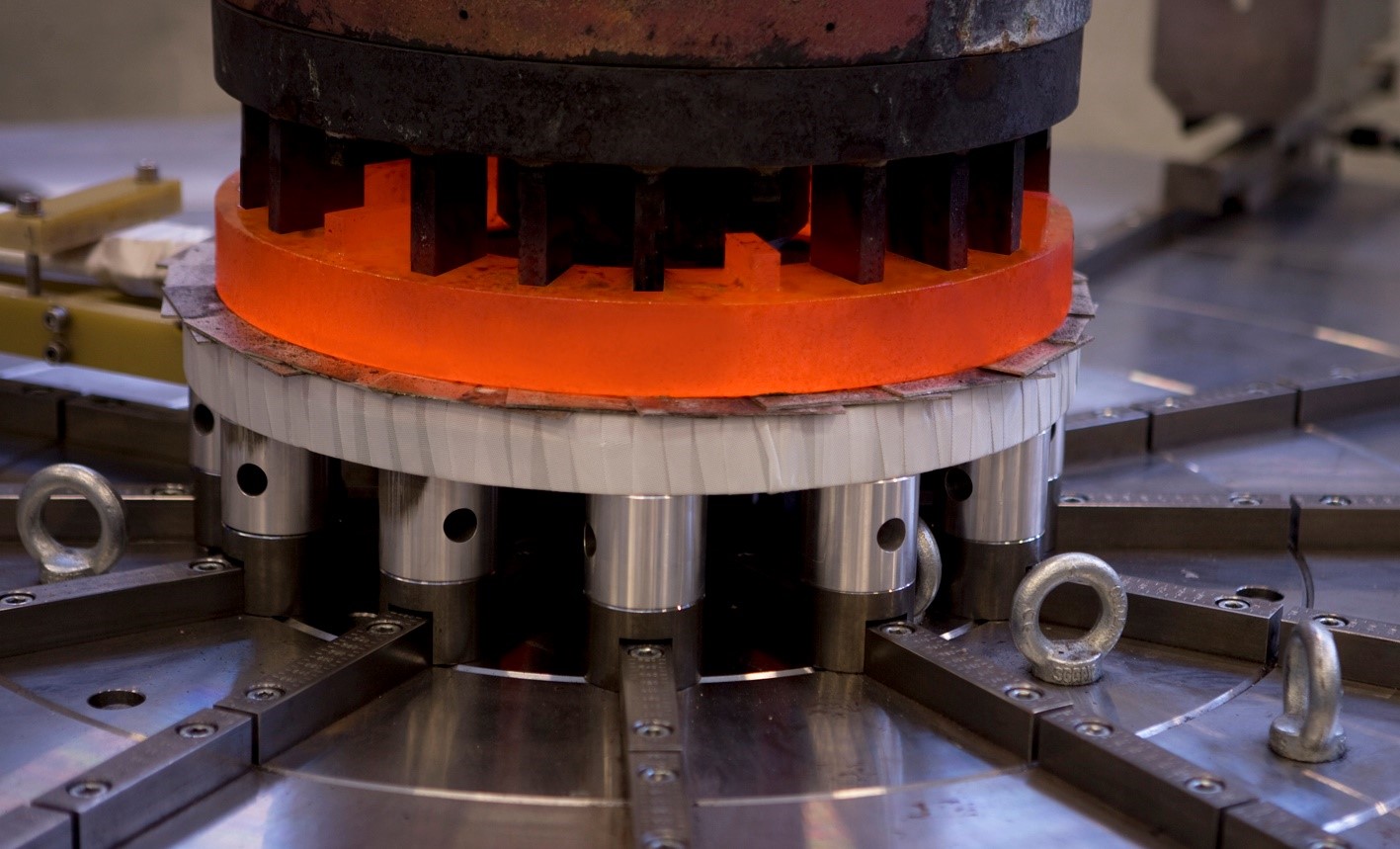

Induction short-circuit ring brazing

GH Induction technology is used to join the short-circuit copper ring to the conductive bars of the squirrel cage rotors with the highest temperature homogeneity up to 3m diameter rings.
Aghile induction heating system:
Hand-held terminal and inductors
All-in-one: all components in the steel frame
Back-pack: all components except cooling

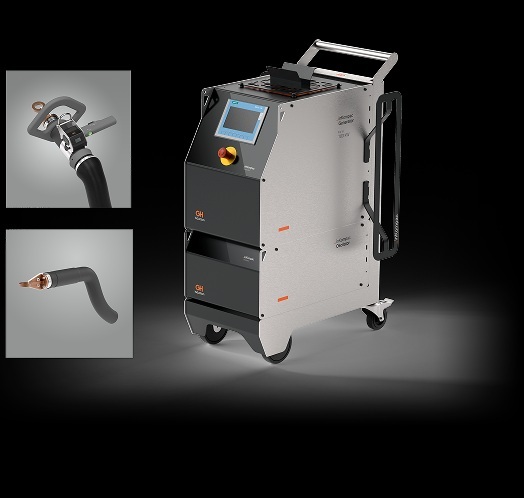

inKompac Essential generator

The Essential system is a standardised solution for just one heating station based on the inKompac Essential generator.
It covers as many medium and high frequency applications as possible with medium-low power ratings, allowing you to adjust your investment and minimise the total cost of ownership of the system.

Transfer Machine

GT2-GT4 Flexible Transfer Machine

Double Front Bar Transfer Machine

Unison Breeze Tube Bending Machines

Our All–Electric heavy duty bending design provides proven reliability and accuracy. The unique combination of Unison’s robust machine design and Unibend software will allow your machine operators the ability to consistently bend tubing with a high degree of control while maintaining a constant force on the tube.

5th Axis

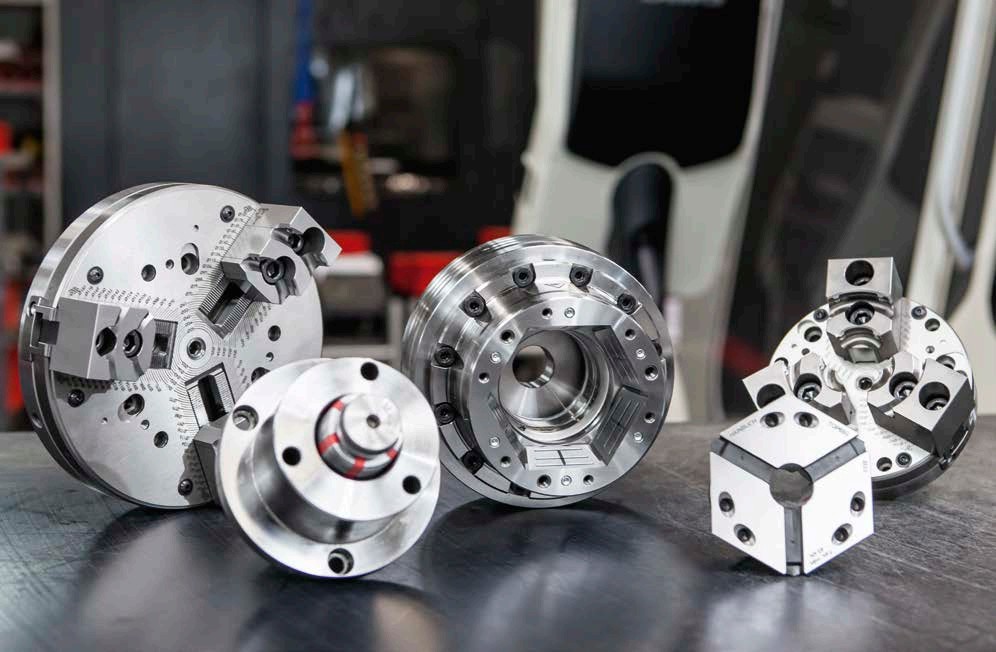

Workholding Evolved

Grip-Tec – Workholding & Toolholding Solutions

Special Purpose Machinery for Aluminium Tube and Can Manufacture

Special Purpose Machinery For the Forging Industry

Special Purpose Machinery For the Aerospace Industry

Superplastic Forming and Diffusion Bonding Presses – Special Purpose Machinery For the Aerospace and Automotive Industry

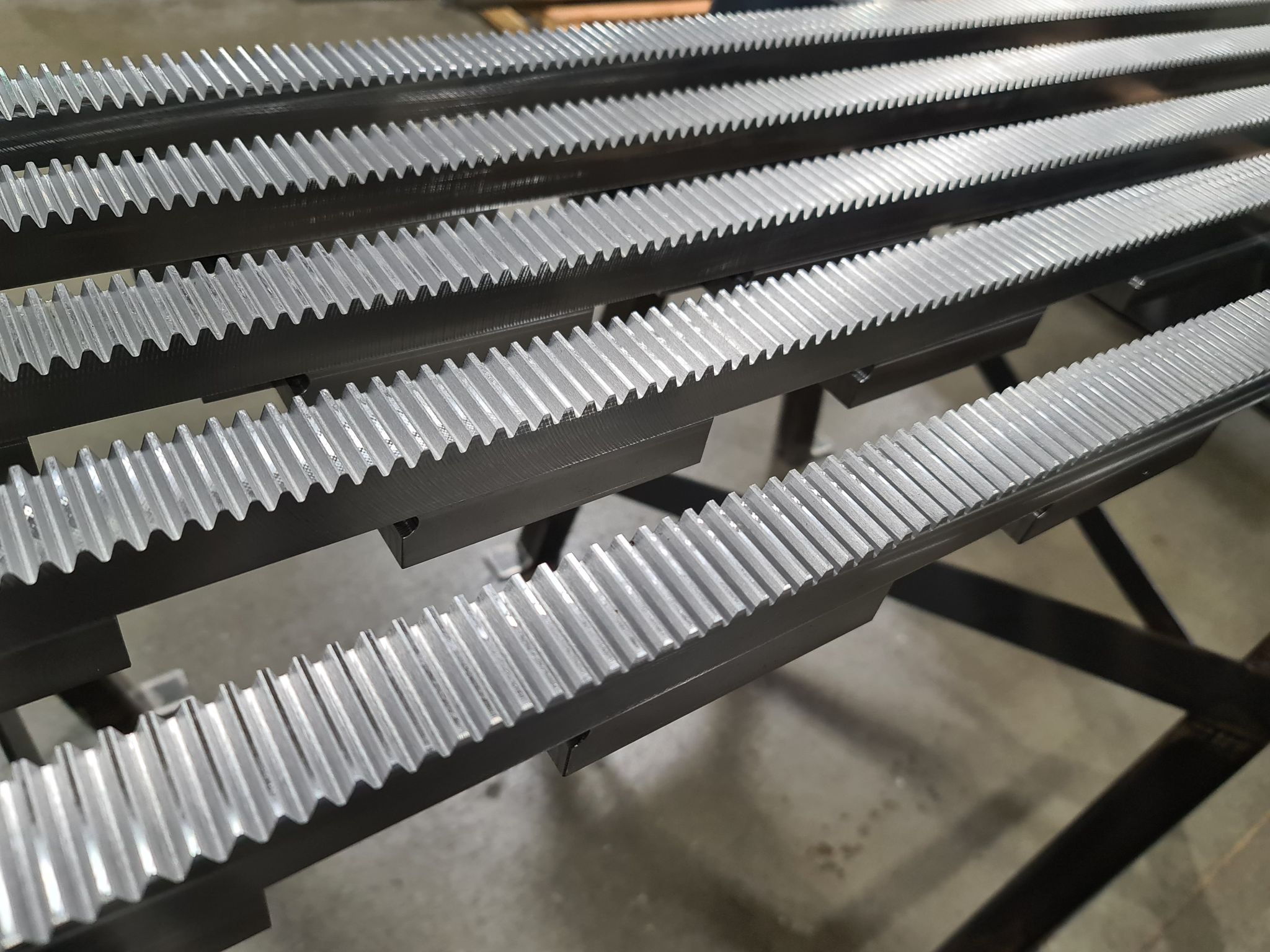

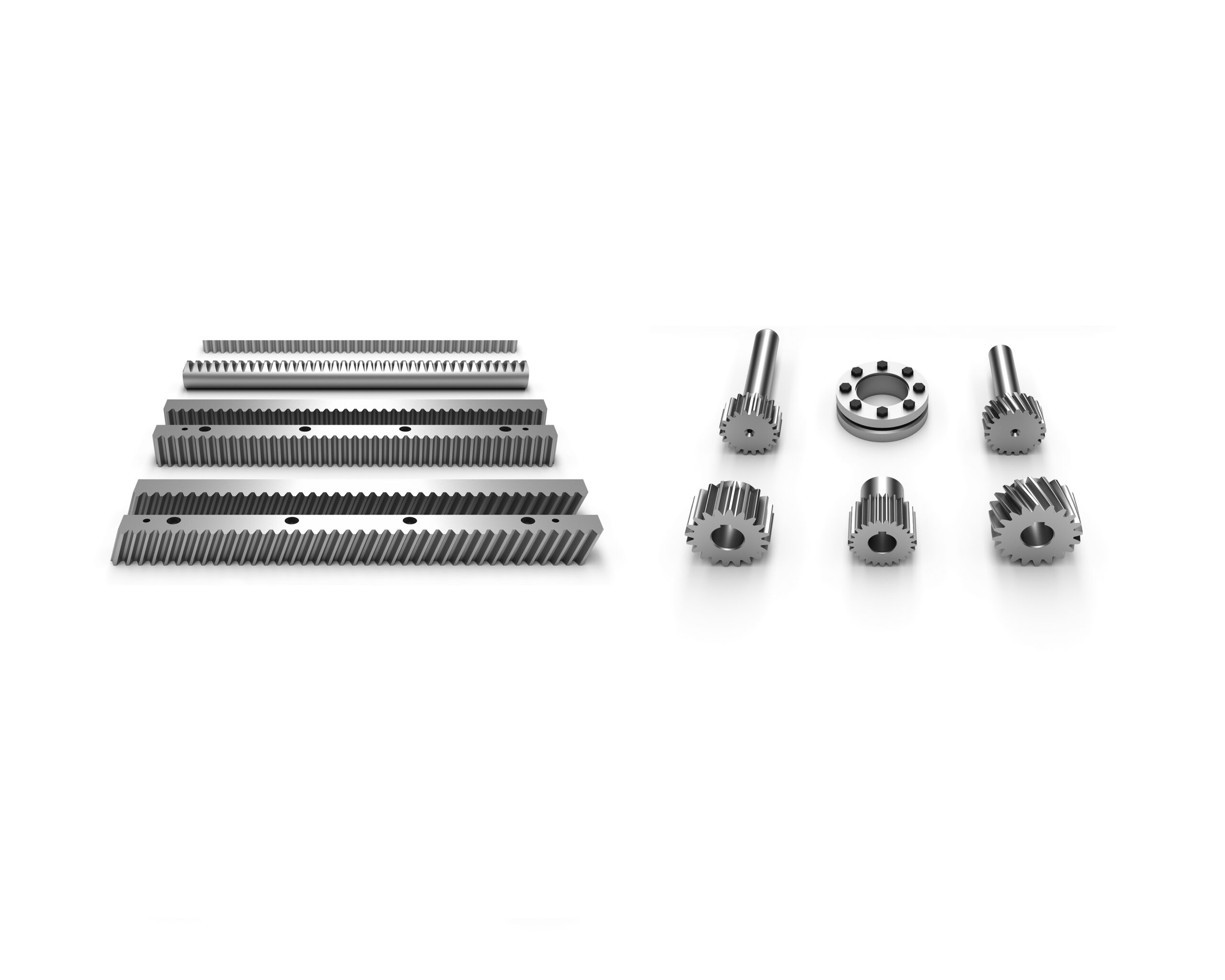

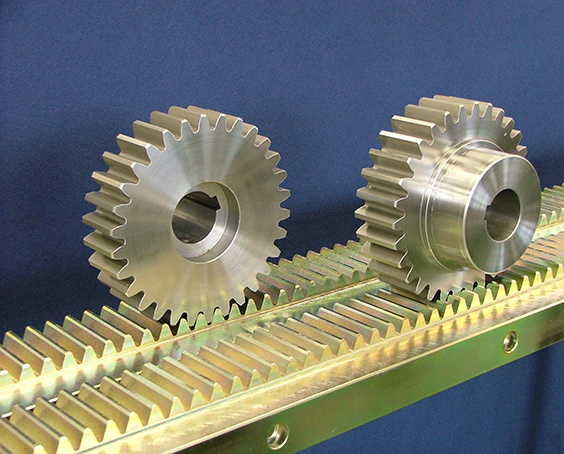

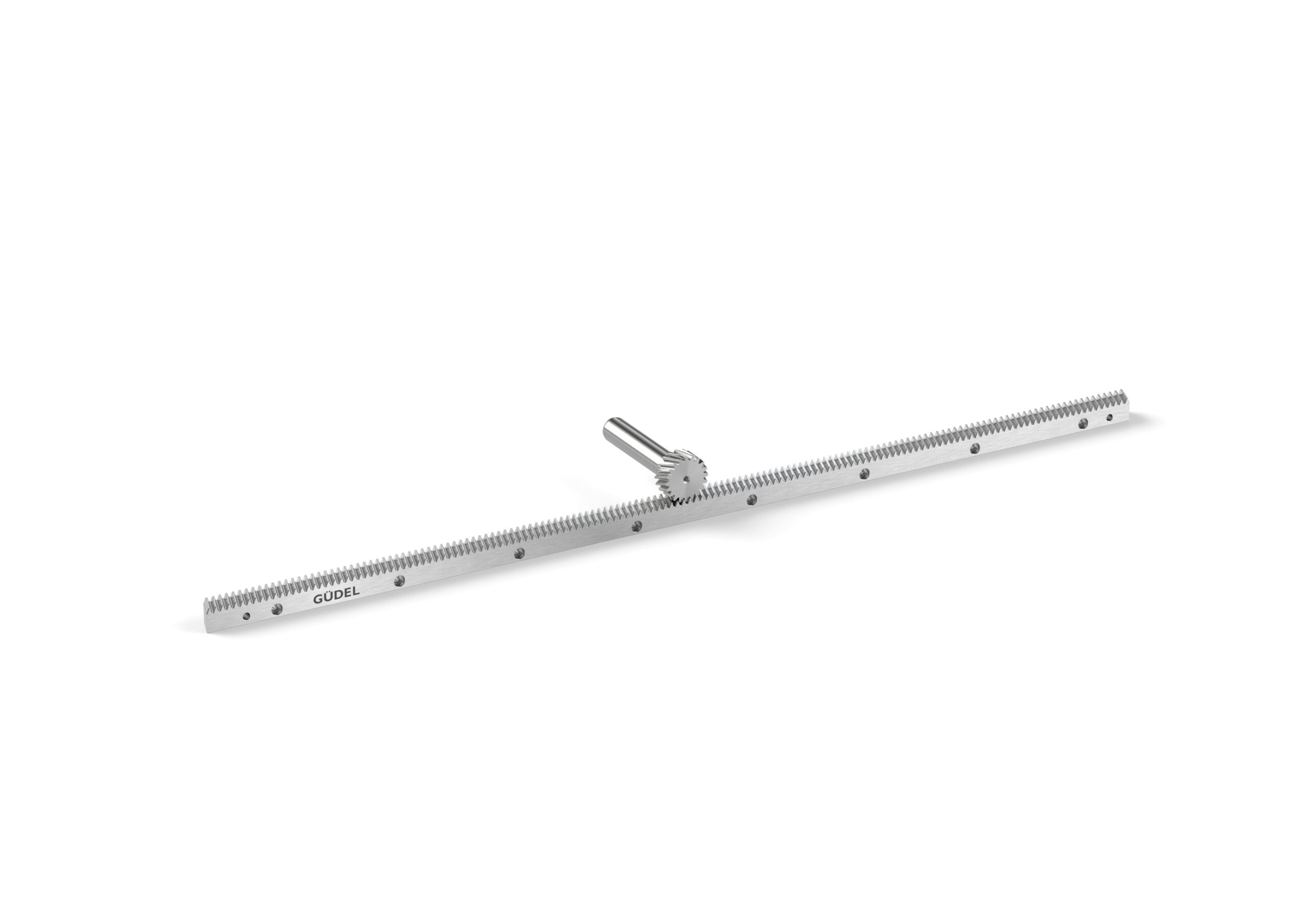

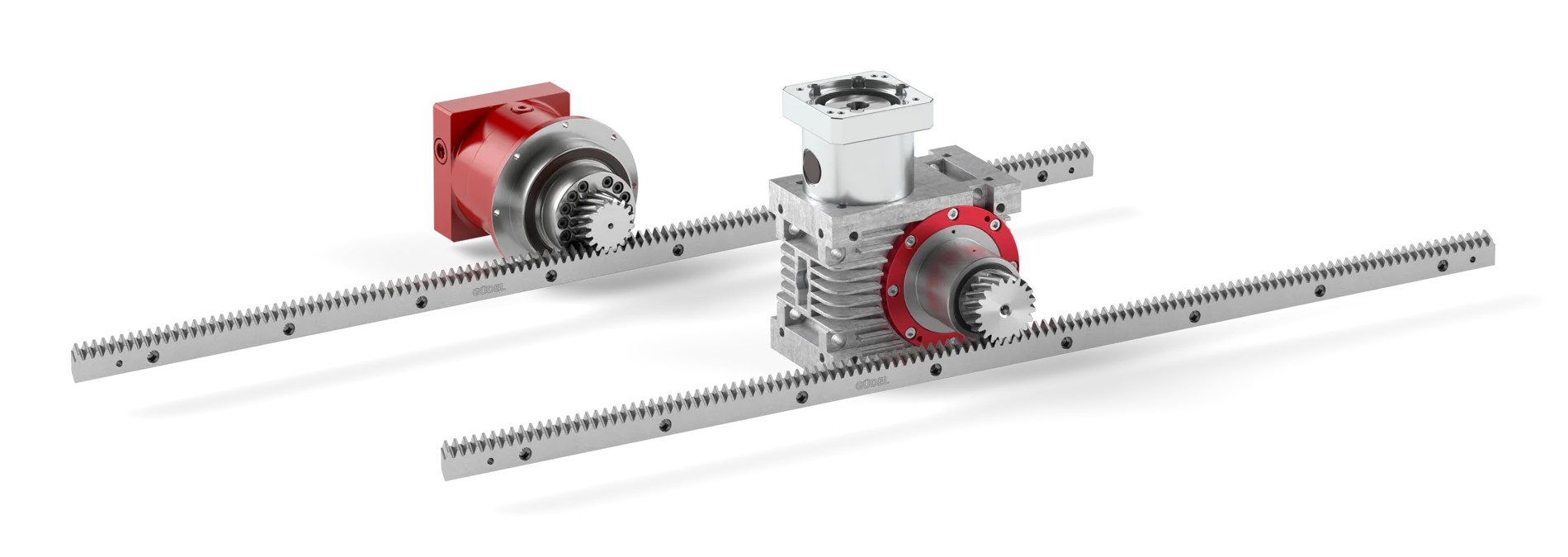

Racks & Pinions

With the right pinion, our product lines deliver perfectly matched solutions for a wide range of applications. Designed for common use cases, the racks integrate easily into your systems.

For requirements beyond the standard range, our semi-finished system provides a fast and cost-effective solution.

Technical data, CAD models, and datasheets are available for download.

Contact us for a solution tailored to your application.

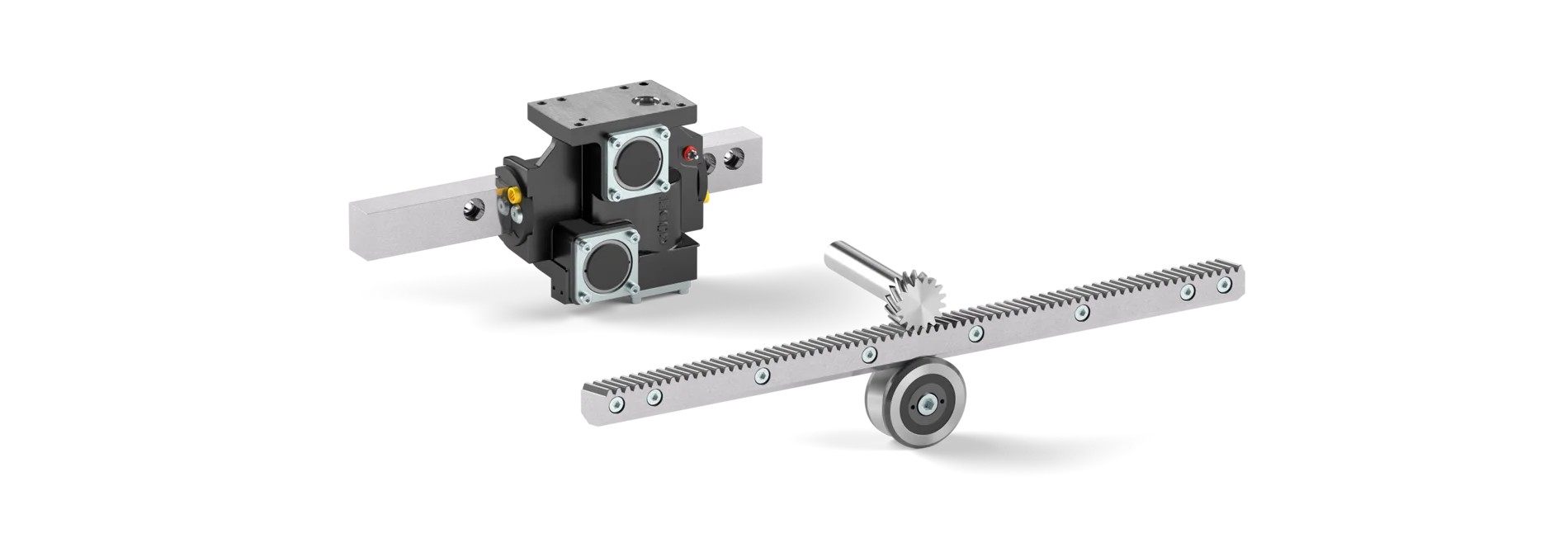

Linear Guideways

We design linear systems for medium to heavy payloads. With precision guides and integrated drive components, they deliver high speed, strong acceleration, and accurate positioning for loads from 10 kg to several tons.

The modular system includes guide rollers, tracks (with or without integrated racks), pinions, and beams. Compact and space-efficient, it offers clear advantages over traditional recirculating ball systems.

Gearboxes – Angular Gear, Planetary Gearboxes and Rotary Drives

Precise ratios for greater flow and power.

From angular drives to high torques, our angle gearboxes, planetary gearboxes, and drive units offer flexible power transmission in various sizes and configurations.

All Güdel units integrate easily with other components to create dynamic power chains. For optimal performance, we recommend our matched function packages of gears, racks, and pinions.

Linear Axis Gantries

Handling weights from just a few kilos up to several tons, our linear axes are indispensable for linear movements where dynamics, efficiency, and low noise levels are key.

Thanks to Güdel's modular system, our components can be easily combined as and when required to form single-axis, multiple-axis, and rotary modules.

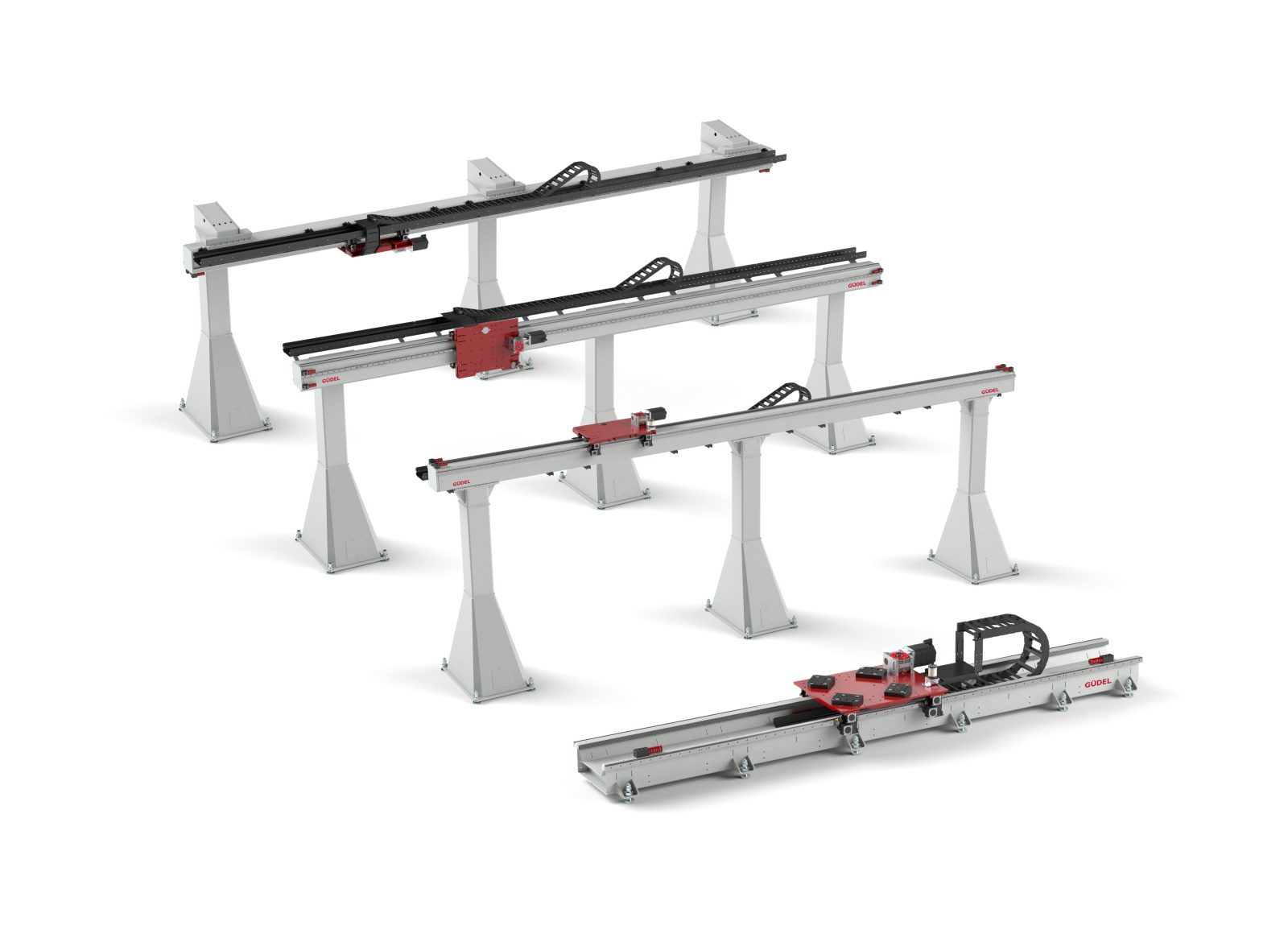

Linear Tracks for Robots

Handling loads from a few kilos to several tons, our linear axes deliver dynamic, efficient, and low-noise motion. Thanks to Güdel’s modular system, components can be combined into single-axis, multi-axis, or rotary modules.

Battery Handling with a Güdel FP-5-HP Gantry

A Güdel FP-5-HP area gantry is handling heavy EV battery packs in an automotive plant in the USA

Automation in Extreme Conditions: Güdel TrackMotion at Metsä Board Husum

What do you do when a workplace is dangerous, extremely hot, and highly corrosive? You automate it – with proven technology from Güdel.

Güdel and Titan Robotics Work Together to Automate De-Painting of Full Aircraft

TMF-4-B – dedicated to Body in White

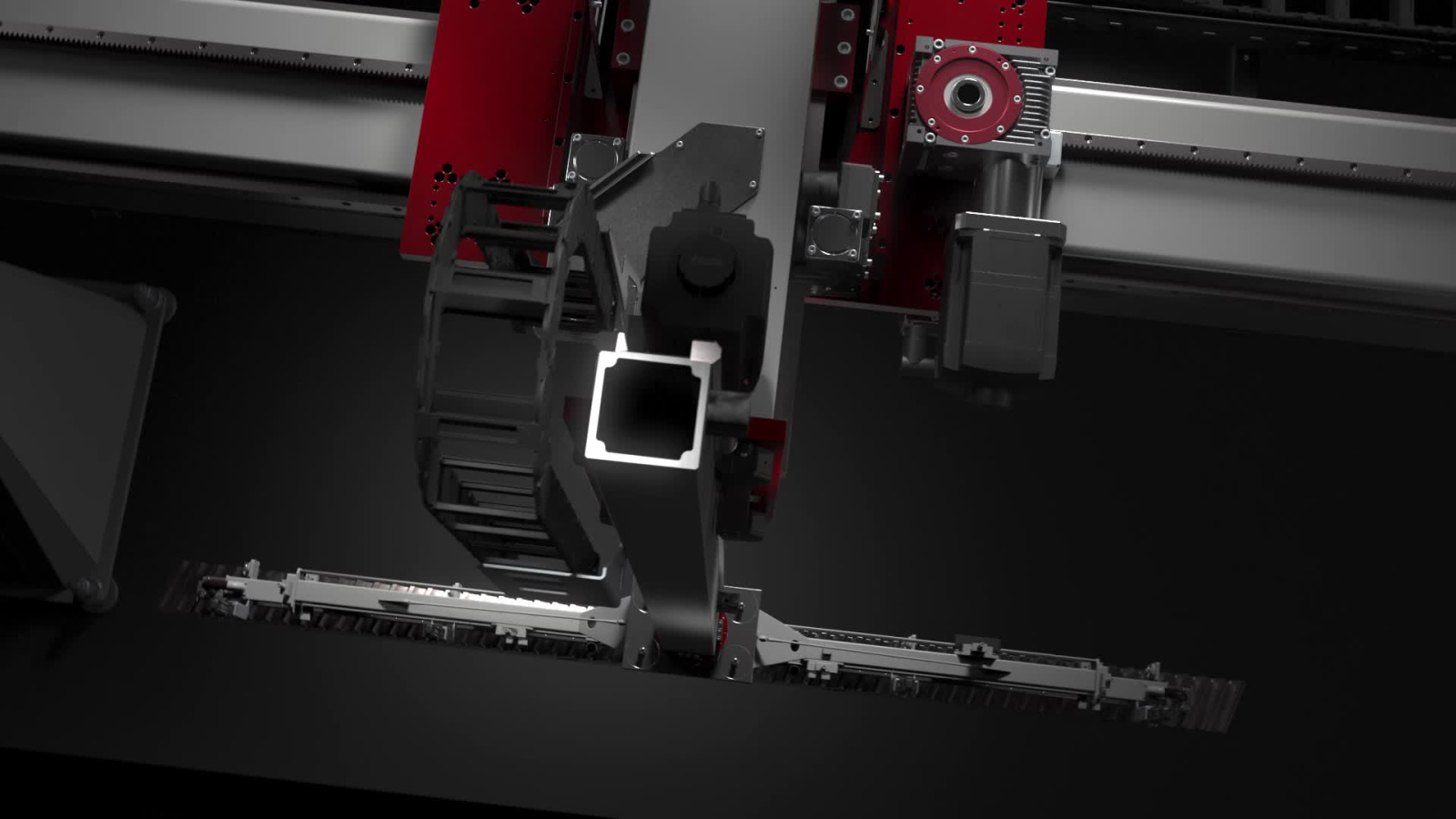

Güdel – automation on track

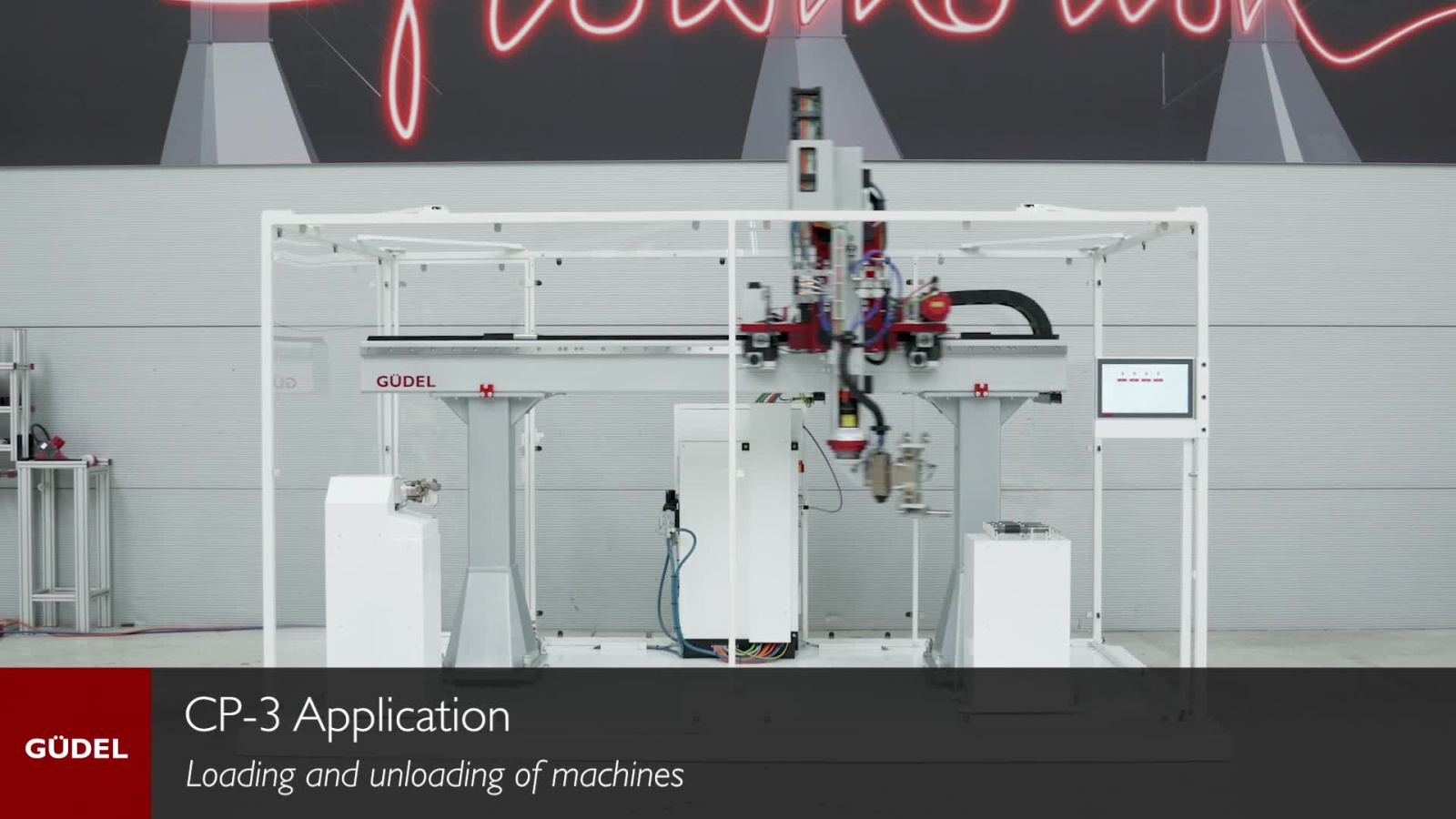

CP-3 Application – Loading and unloading of machines

3-Axis Cantilever Gantry System demonstration of machine loading and unloading.

Racks Next Generation

Güdel racks and pinions engage perfectly – for maximum performance, repeatability and long service life. Our portfolio brings structure to your selection process with three clearly defined product lines, perfectly tailored to your application needs.

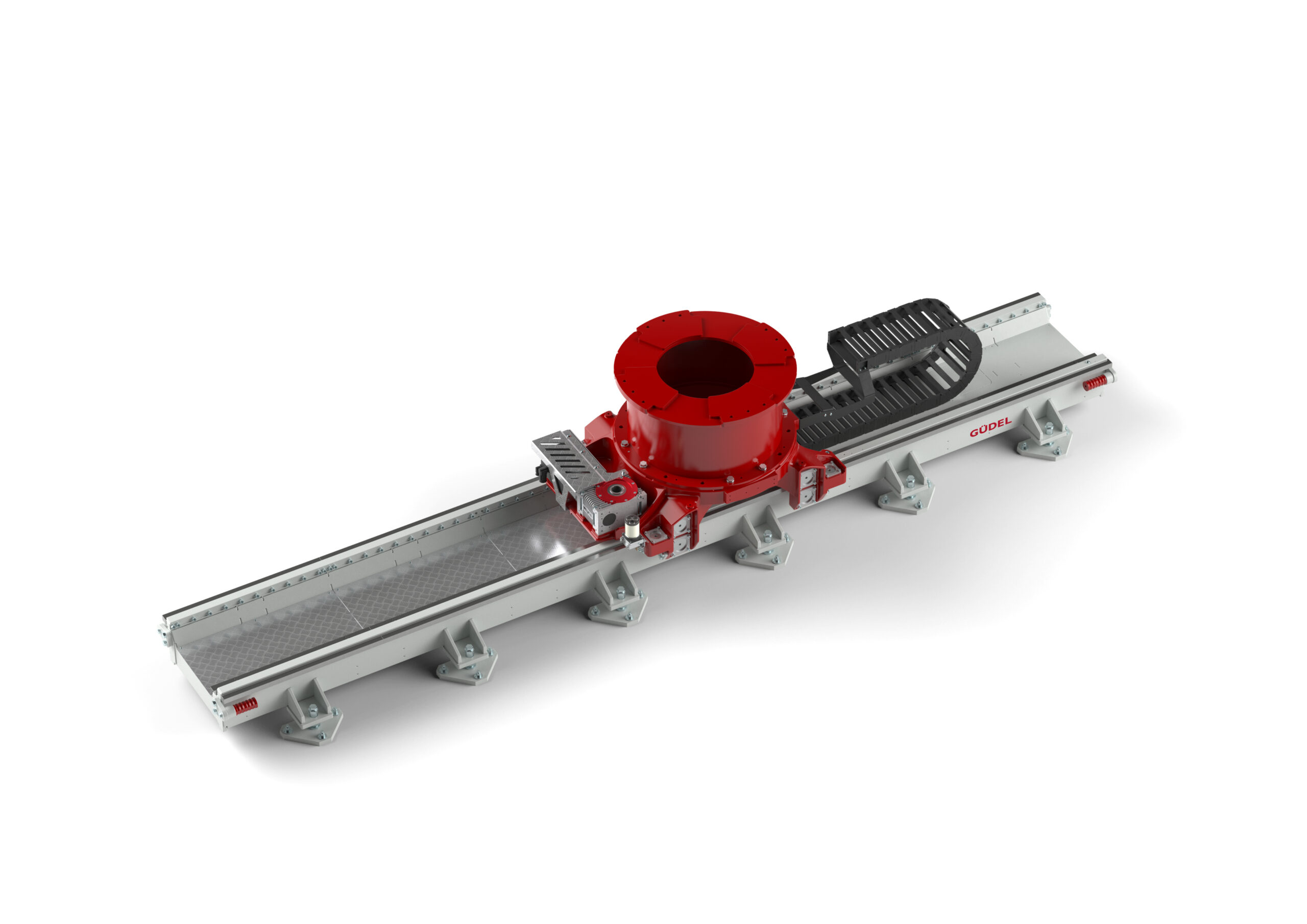

Trackmotion TMF-4-B

The TMF-4-B is a robot drive axis specially developed for the automotive body-in-white market and designed for a specific range of handling and welding robots.

Product and solutions Portfolio

Güdel offers a wide range of products and solutions for a variety of industries. This Brochure provides a brief overview of our:
- Linear and Drive Technology
- Linear Tracks for Robots
- Linear Axis and Gantries
- Functional Packages
- Custom Production Automation
- Güdel Servicing

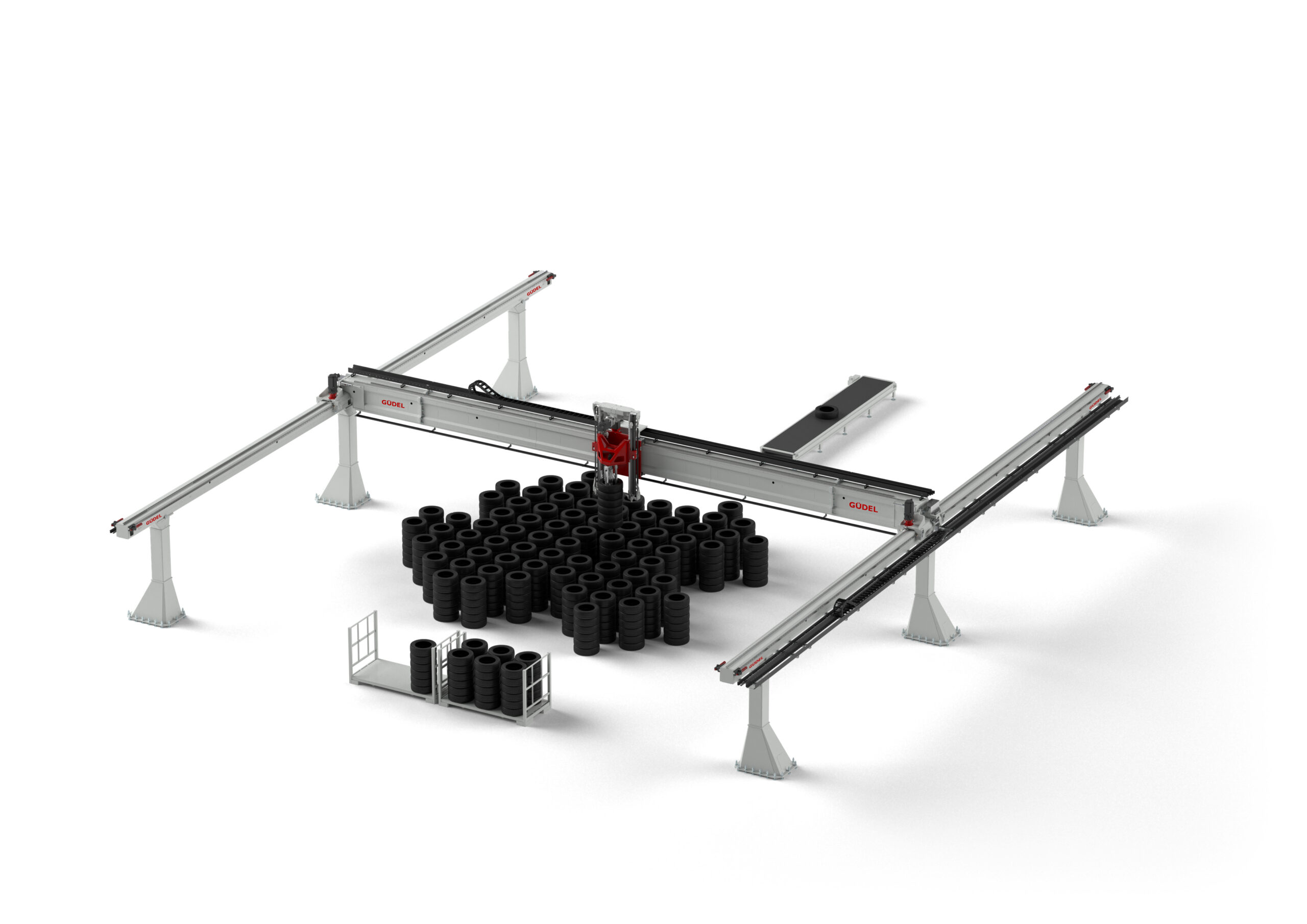

FP-5-HP

FP-5-HP – Gantry system for large workspaces

Production processes with large working areas require maximum performance, high process reliability and system
availability. The FP-5-HP area gantry was specifically developed to meet these requirements and provides a
reliable platform for highly dynamic automation solutions.

Autonomous GO – Pay-Per-Hour Automation for Manufacturing

Autonomous GO is a pay-per-hour automation service that allows manufacturers to deploy autonomous vehicles for internal material movement with zero CapEx. Manufacturers pay only for robot hours worked, invoiced monthly.

The service automates repetitive transport of raw materials, work in progress, and finished goods within live factory environments, improving flow and freeing operators for skilled production tasks.

There are no installation, licence, maintenance, or support fees. Costs are set at half the equivalent human wage, with return on investment achieved within the first hour. Vehicles are application-ready, with configurable tops to suit different processes, including examples such as tote handling, conveyor transfer, and box or container movement.

Autonomous GO — Automation by the Hour for Manufacturing Productivity

Autonomous GO is a flexible, fully managed, pay-by-the-hour automation service that deploys autonomous vehicles to streamline repetitive material movements in manufacturing. There is no CapEx, no long-term contract, and no installation, licence, or maintenance fees. With this model, manufacturers pay only for hours worked while boosting productivity and freeing skilled staff from low-value tasks.

Autonomous GO: Automation by the Hour for Manufacturing Operations

Autonomous GO is Guidance Automation’s pay-by-the-hour service for deploying autonomous vehicles to support manufacturing operations. The service takes on routine, low-value movement within the production environment, allowing skilled people to focus on higher-value work. With zero CapEx and no installation, licence, or maintenance fees, Autonomous GO is fully managed and monitored, delivering ROI within the first hour of operation.

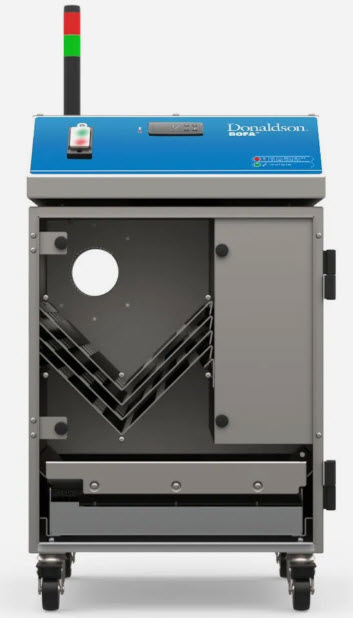

BOFA Spark Arrestor

Essential safety measure requirements with the Donaldson BOFA Spark Arrestor 2. A spark reduction system developed to help reduce fire risks in laser processes. It is designed to prevent potentially damaging particulate from entering the fume extraction system. If the temperature sensor inside the Spark Arrestor 2 detects a 18°F (10°C) rise above the ambient, it will sound an alarm and cut power to the extractor.

Reduces fire risk
Intercepts ignition sources
Thermal flow cut-out

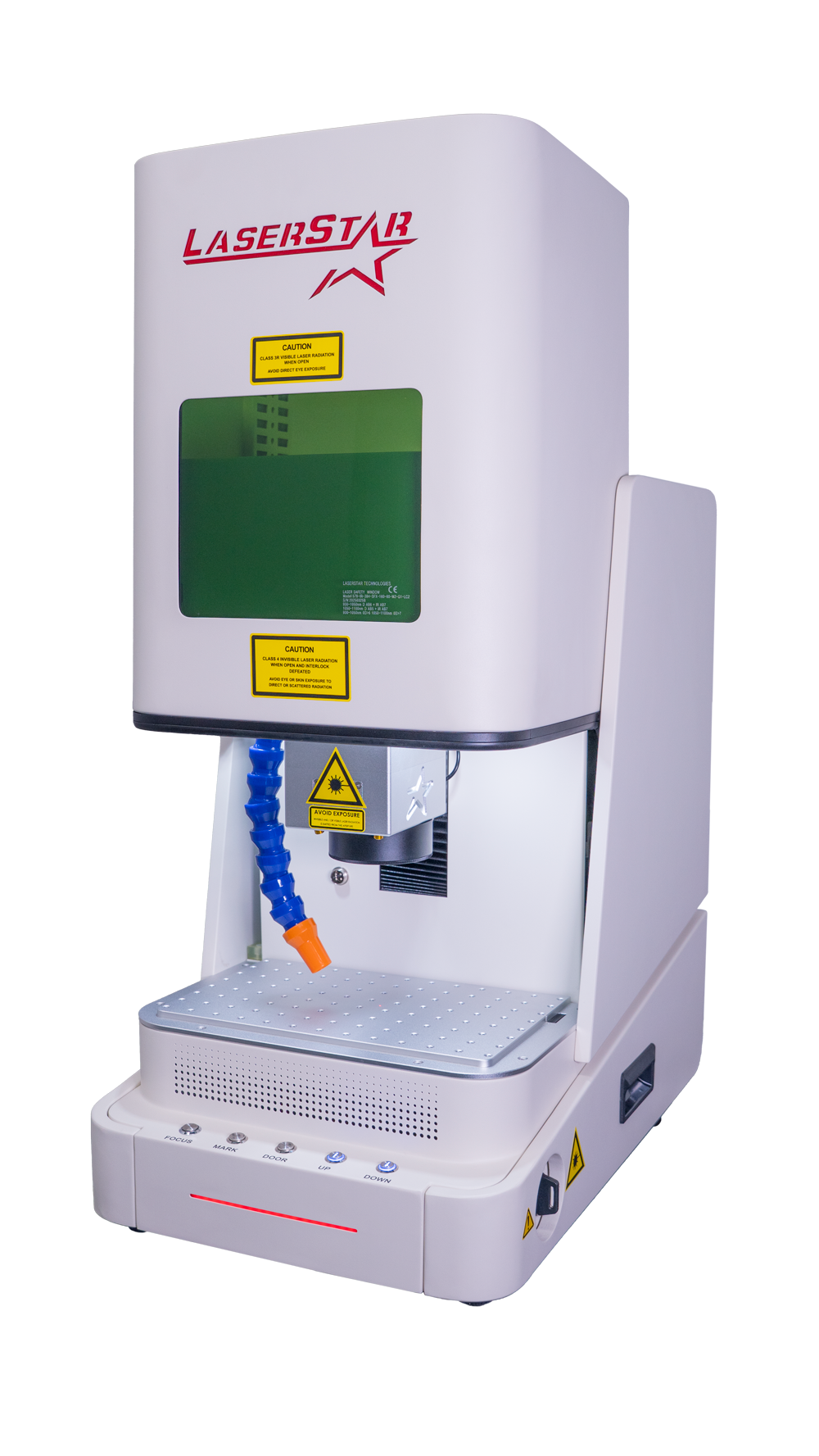

LaserStar Fiber Laser engraver/marker

This 3804 60W MOPA FiberCube 7K High speed scanhead technology Fiber laser is set up as a class 1 unit but can be operated with the safety door open. Available with:
CNC rotary.
Optional lens selection , 100mm 160mm
Supplied with LaserStar's StarFX Premier Design Studio industrial software, training and support

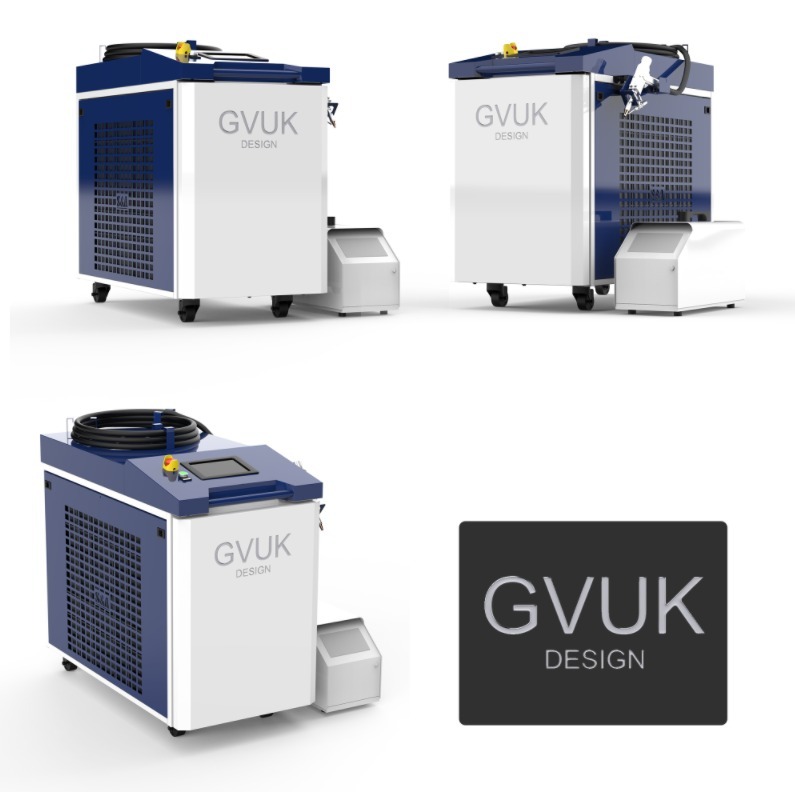

GVUK Design Signature hand-held 3-in-1 laser cutter, welder & cleaner

This compact, hand-held laser cutter, welder and cleaner comes with auto wire feeder and interchangeable nozzles.
4mm single sided weld, 8mm double sided weld

GVUK Design Signature 2KW CW Laser Cleaner

GVUK Signature 2KW CW single phase laser cleaner is ideal for industrial cleaning, removing rust, grease, grime, stone work cleaning and graffiti

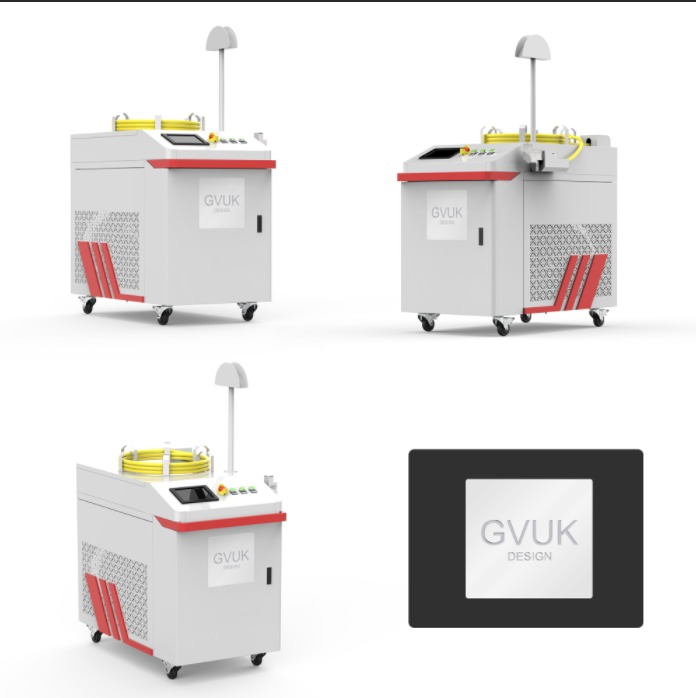

GVUK Design Signature 3KW CW Laser Cleaner

GVUK Design Signature 3KW CW laser cleaner with 30cm wand width.
This industrial laser cleaner will remove rust, grim, grease and paint with ease, it will also clean up stone work and graffiti.

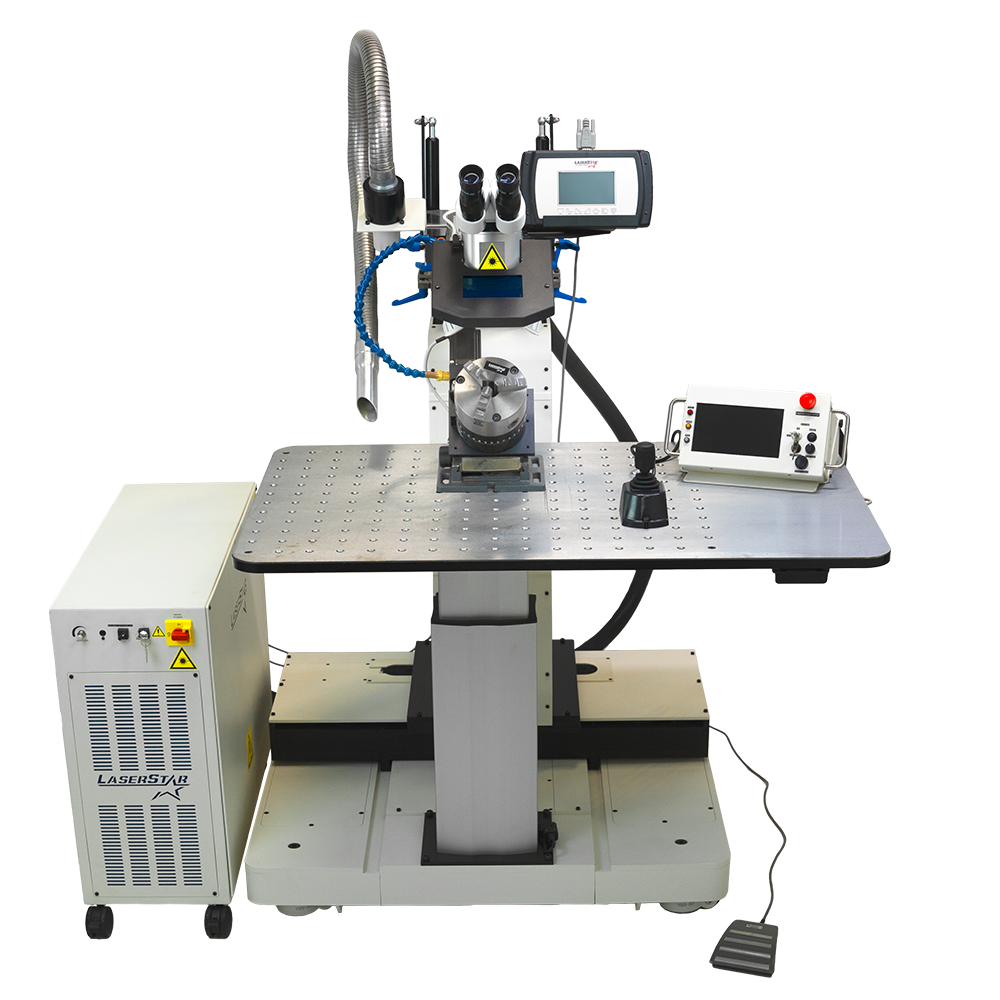

LaserStar FiberStar CNC 8900 open welding work station

Powerful 3-axis CNC + manual programming modes available in Pulse and CW output modes in 150W-600W power options with full LaserStars Premier FX CNC software.
Designed, and built in the USA

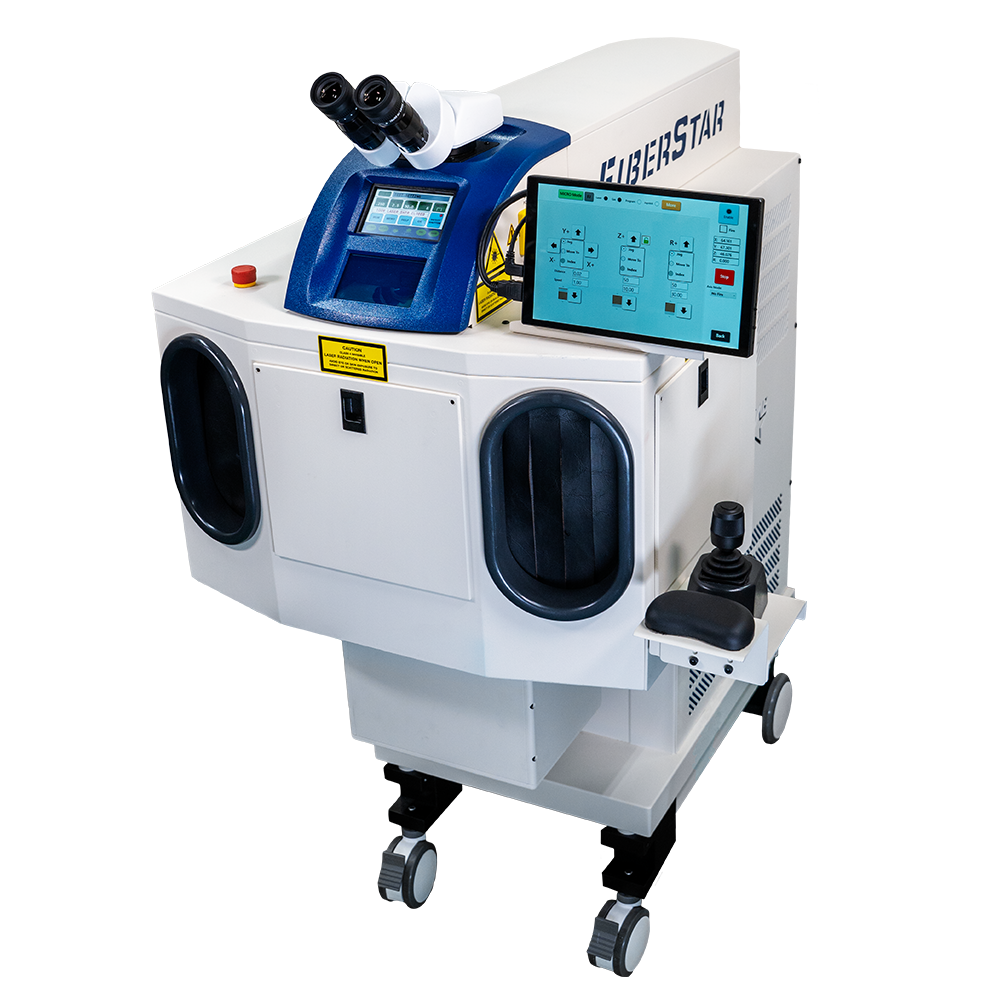

LaserStar Fiber laser CNC welder 7601

This premium Fiber laser welder with X,Y & Z CNC control, with 'teach mode' + you can import your G-Code. Complete with rotary options for total versatility.

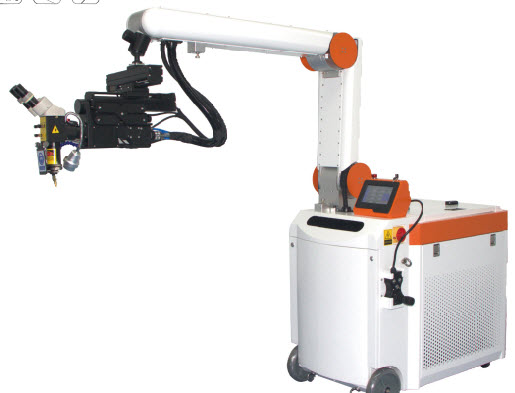

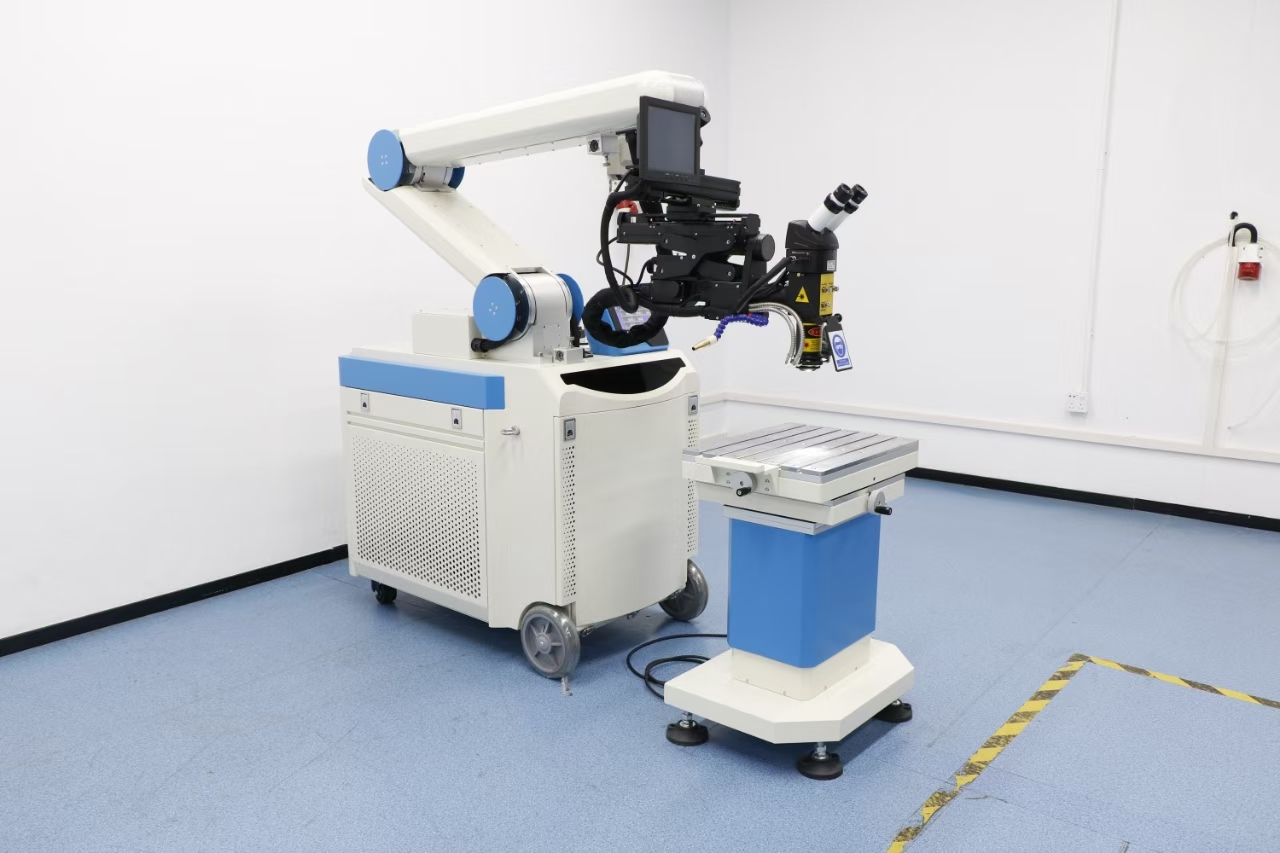

GVUK Design Signature Articulated Fiber laser welder

this 300W Fiber laser, with no servicing, no lamp changing and stable power output for many, many years
The 1.6M reach is perfect for mold repairs a rotating head ensures easy access for angular and tight spots. Bifocal microscope plus monitor for easy viewing wnd joystick control for accurate positioning. BOFA Extraction and filtration unit completes this incredibly versatile fiber laser welder

Improbond laser wire

Tool & Mold repair alloys - Chromium-nickel - Nickel alloy - Copper alloys - Aluminium alloy
Laser wires with conformity certificate with every batch. Available from 0.2 - 0.8mm in tube of 320mm or bobin reel.

See the full list on our web site: gvukdesign.co.uk

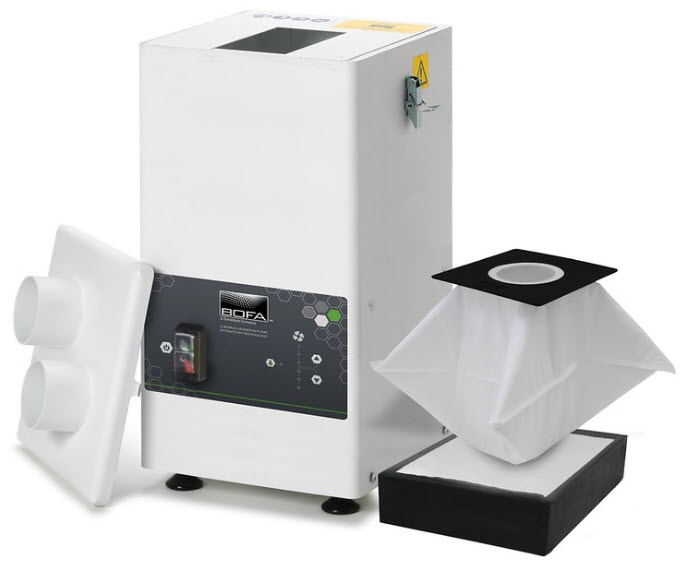

BOFA Extraction and filtration units

Donaldson BOFA Extraction & Filtration units deliver on delivering safe and clean air. An additional Spark Arrestor where appropriate to guarantee a safe hazard-free environment.
Let us quote you for the perfect solution, optional survey and installation with our qualified engineer.

GVUK Design Signature CW Laser Cleaner

CW laser cleaners are environmentally safe, the vapor particles can be collected by extraction & filtration units like the BOFA range we have on show,
Safe use for rust, grime, grease, oil plus brickwork and stone cleaning including graffiti removal.

Improbond laser wire

Certified laser welding wire from Improbond, available from 0.2mm - 0.8mm in 320mm length tubes of 100 or on reel.
Tool & Molding
chromium-nickel alloys
nickel-based alloys
copper alloys
Aluminium alloys

LaserStar Fiber laser Engraver/Marker

Fiber Laser marking, from colour marking on steel to bar-codes, QR codes and serial identification marking for traceability.
Available in different configurations. Come and speak to the team.

GVUK Design Signature Articulated Fiber laser welder

Joystick precision control, this 300W Fiber laser welder with rotating laser head and a 1.6m reach is perfect for your welding requirements. No servicing required, 40,000 + hours of use!

Laser Cleaning

Pulse or CW laser cleaners, GVUK have the right solution, come and have a chat about your requirements

WHOLE COVER LASER CUTTING MACHINE LF3015PII

The LF3015PII with electric pull-out Platform, can lock the platform at any position within the range of the pull-out stroke of the platform. Also can pull out the entire working width, and the whole plate can be loaded vertically. After the cutting is completed, there is no need to probe into the equipment to pick up the material.
The bed is welded by high-quality steel plate and pipe.The bed has sufficient structural stability, shock resistance and no deformation for long time. The fully enclosed cover has beautiful appearance, segmented smoke extraction good smoke exhaust effect, adopting a new smoke exhaust method of two blowing and one suction segmental smoke exhaust, hygiene and high safety, which can meet the requirements of TUV and FDA safety standards.
Built-in electric control cabinet and laser source Save freight cost. Save installation time. Whole machine can fit into a 20-foot container.

G2 20W Metal & Plastic Fiber Laser Engraver

Makes It Easier to Customize Your Creation
GWeike Cloud G2 20W Metal Laser Engraver Bring Industrial to Home Use
1. Speed up to 15000mm/s
2. 100k Hours Lifespan
3. Exceptional Accuracy
4. Desktop & Handheld 2 in 1
5. Auto Lift & Manual Lift
6. Working Area 110*110mm & 150*150mm
7. Vivid Color Engraving

3 IN 1 Handheld Laser Welding and Cleaning System

Welding and Cleaning Dual Use
This laser cleaning machine (laser welding machine) is small size and lightweight, easy to learn, and only a few hours for beginners to get started. Realize the three functions of cleaning, welding, and cutting at the same time use the power of your laser for pre and post-weld cleaning.

This laser cleaning machine (laser welding machine) is small size and lightweight, easy to learn, and only a few hours for beginners to get started. Realize the three functions of cleaning, welding, and cutting at the same time use the power of your laser for pre and post-weld cleaning.

Intelligent Operating System
Laser rust removal gun adopts touch screen design, easy and quick to click and set, with real-time fault reading, feedback and alarm functions.

The laser cleaning machine is a process parameter library, which can realize the rapid storage and recall of cleaning process parameters.

Remote controller at the welder side for multi-parameter adjustment. Save time and effort, easy to operate.

GWEIKE | WHOLE COVER FIBER LASER CUTTING MACHINE LF3015GA

With a fully enclosed design; The observation window adopts European CE Standard laser protective glass; The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;

It adopts an up-and-down exchange platform; The converter is responsible for controlling the exchanging motor;can finish the platform exchanging within 15s.

3rd Generation aviation aluminum gantry and the segmented rectangular tube welded bed, good toughness, lightweight, corrosion resistance, anti-oxidation, low density, and greatly increased processing speed. Effectively avoid the deformation of the bed.

Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.

Gweike Fiber Laser Cutting Machine !

GWEIKE Company Introduce

3 IN 1 Handheld Laser Welding & Cleaning System

his laser cleaning machine (laser welding machine) is small size and lightweight, easy to learn, and only a few hours for beginners to get started. Realize the three functions of cleaning, welding, and cutting at the same time use the power of your laser for pre and post-weld cleaning.
Intelligent Operating System
Laser rust removal gun adopts touch screen design, easy and quick to click and set, with real-time fault reading, feedback, and alarm functions.
The laser cleaning machine is a process parameter library, which can realize the rapid storage and recall of cleaning process parameters.
Remote controller at the welder side for multi-parameter adjustment. Save time and effort, easy to operate.

GKS-6024T2 AUTOMATIC PROFESSIONAL TUBE LASER CUTTING MACHINE

Fiber laser cutting machine can achieve the pipes multi-angle precision processing to fulfil the oil transportation requirement. Professional tube fiber laser cutting machine—LF60M is used for cutting square tube, rectangular tube, oval tube, waist type tube, hexagonal tube; square tube □ 20 * 20- □150 *150mm, round tube Φ20-Φ 210mm wall thickness of 0.5-10mm carbon steel tube, 0.5-10mm stainless steel tube.

Gweike cloud Laser Cutter & Engraver with Rotary CO2 (50W/55W) Pro II

Sparkle Your Creation with Gweike cloud Materials
1. Built-in Water Chiller, ≤70dB
2. Air Exhaust Fan, ≤70dB
3. Built-in Air Compressor, ≤70dB
4. 5MP Camera, Preview Design and Visually Position.
5. Honeycomb Panel, 20.08" (510mm)*11.8" (300mm)
6. Material Package：Basswood*5, Acrylic*5, Cardboard*5
7. Gweike Cloud Web Software with Free Online Design Library and Control Motherboard Upgrade

G2 20W Metal & Plastic Fiber Laser Engraver

Makes It Easier to Customize Your Creation
GWeikeG2 20W Metal Laser Engraver /Bring Industrial to Home Use
1. Speed up to 15000mm/s
2. 100k Hours Lifespan
3. Exceptional Accuracy
4. Desktop & Handheld 2 in 1
5. Auto Lift & Manual Lift
6. Working Area 110*110mm & 150*150mm
7. Vivid Color Engraving

GWEIKE | WHOLE COVER FIBER LASER CUTTING MACHINE LF3015GA

LF3015GA fiber laser cutting machine can carry up to 8000W laser power, so cutting some thick plate, it is a very good choice. For example, agricultural machinery, textile machinery, food machinery and construction machinery and other large machinery and equipment manufacturing, usually use high power fiber laser cutting machine for processing. Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.

GWEIKE CUTTING/BEND/WELD/CLADDING

Introducing GWEIKE's product range, including but not limited to brochures.

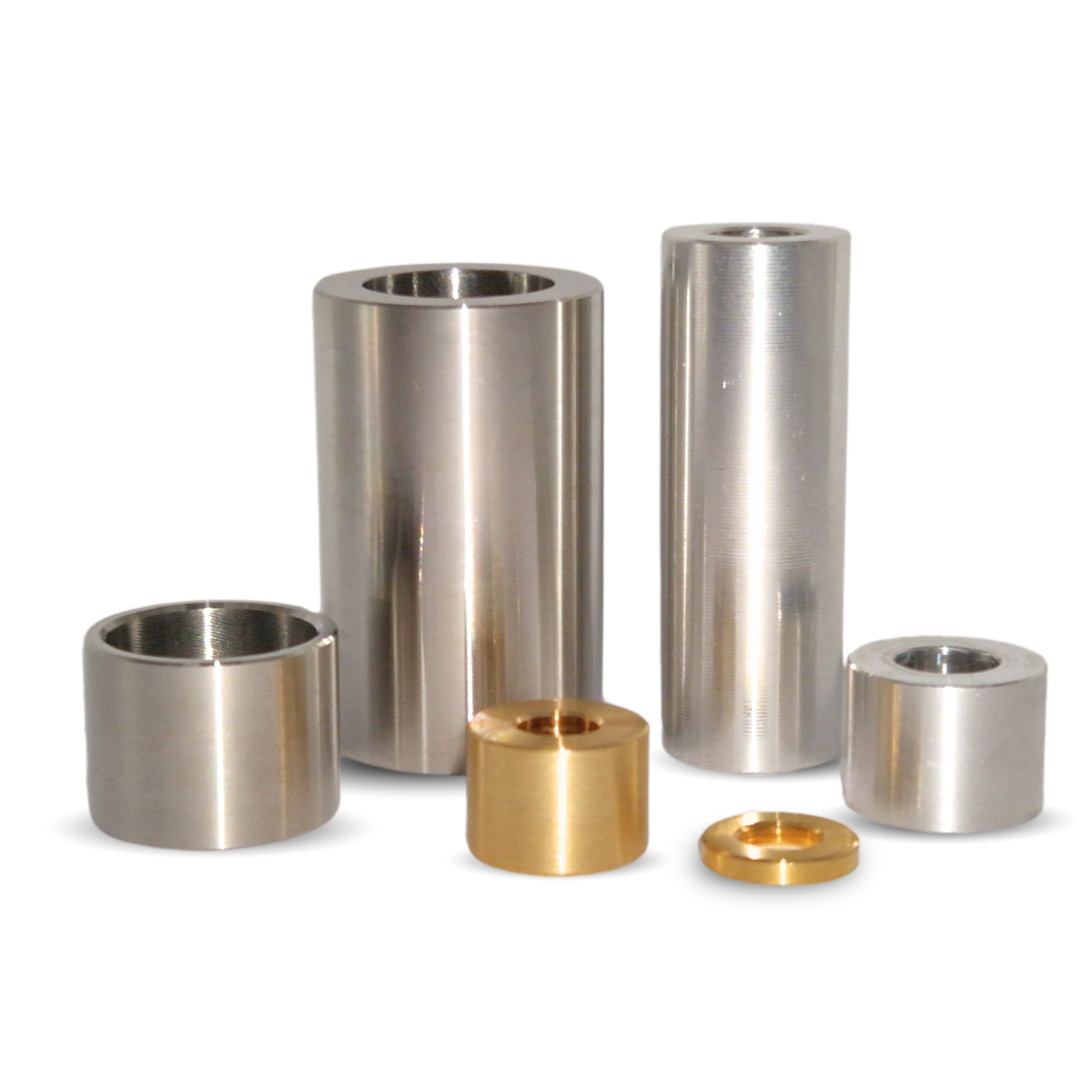

Spacers & Standoff’s

Our in-house manufactured spacers are available from stock in a range of materials, internal and external diameters, lengths, and colours. Precision turned from solid bar, we offer these in Stainless Steel, Aluminium and Brass with metric and imperial threaded mild steel options also available. Custom sizes and materials are available upon request.

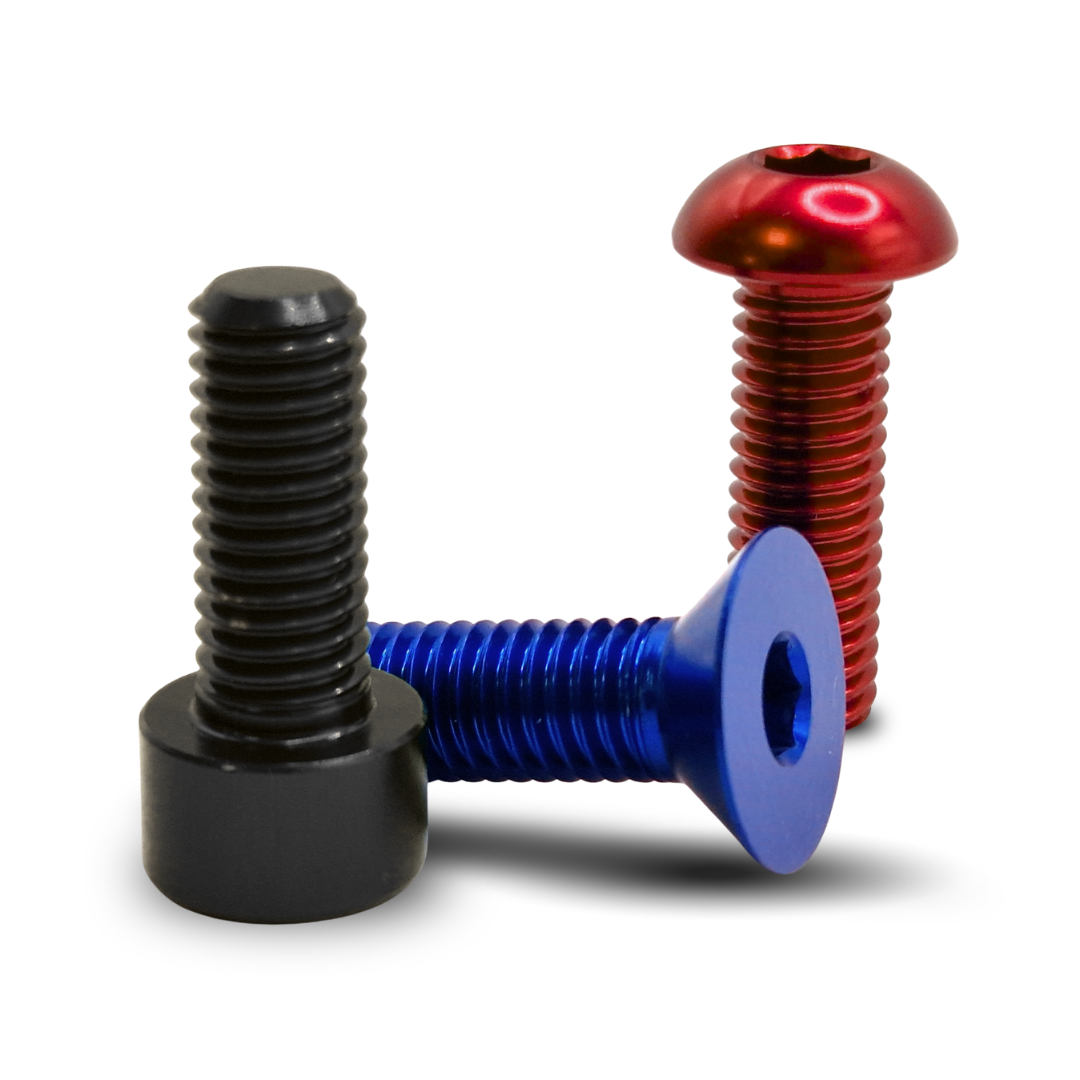

Aluminium Fasteners

Our in-house aluminium fasteners include precision CNC-machined machine screws, washers, and spacers, manufactured from high-quality 7075 or 6082 aluminium bar. Available without a finish or anodised in silver, black, red, blue, and gold, we also offer custom lengths, diameters, and colours on request, subject to minimum order quantities.

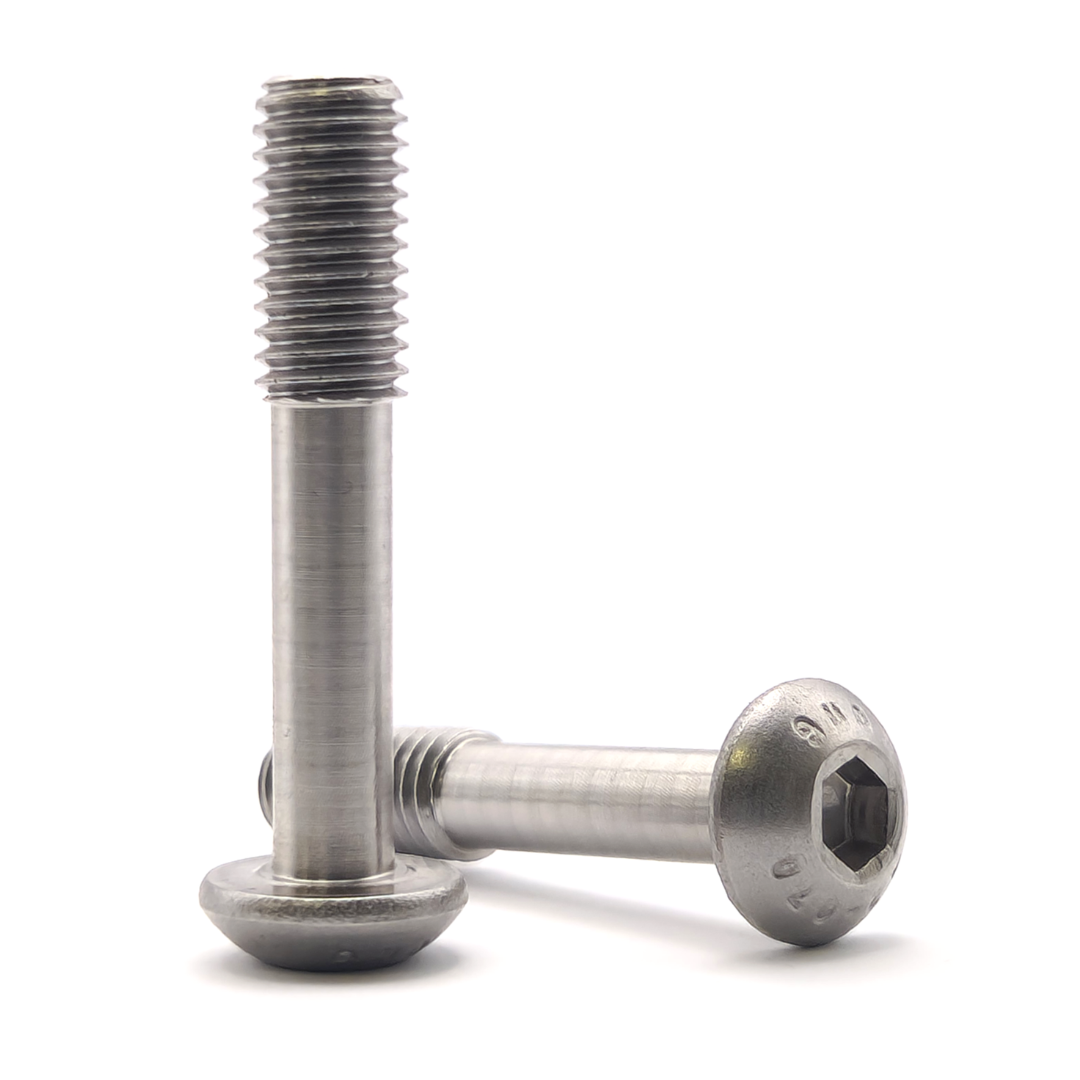

Captive Screws & Washers

Our captive fasteners are manufactured or modified in-house and feature a reduced, unthreaded shank that allows component disassembly without complete screw removal, preventing loss and enhancing safety in applications where fall out can lead to damage, machine breakdown or contamination. Ideal for panels requiring regular maintenance, they can be permanently retained or fully removable with the use of a captive washer. Custom lengths and dimensions are available upon request.

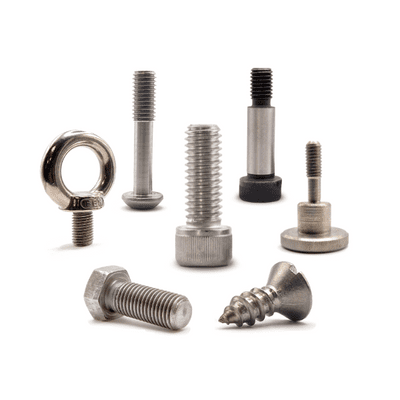

Screws, Bolts & Nails

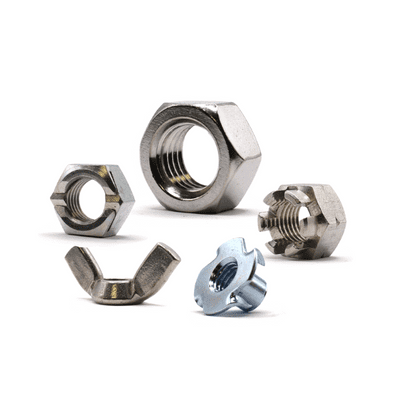

Nuts

Washers

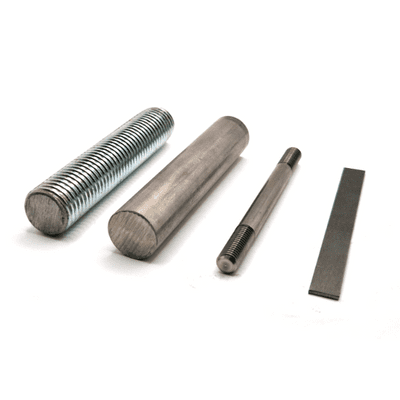

Bar & Studs

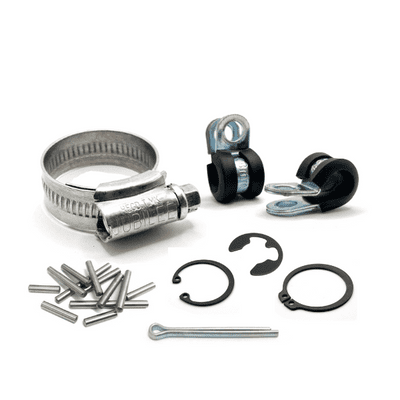

Rivets, Clips & Pins

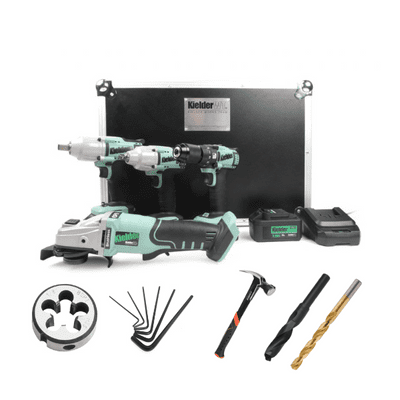

Tooling

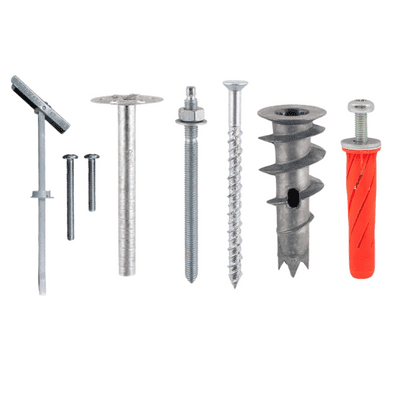

Masonry & Cavity Fixings

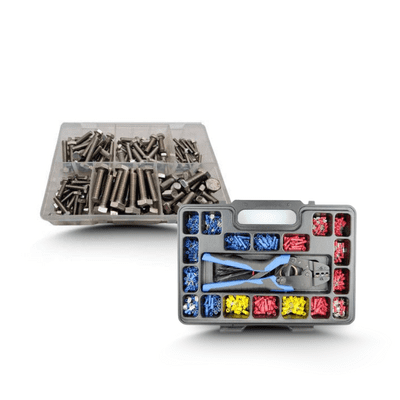

Kits & Assorted Boxes

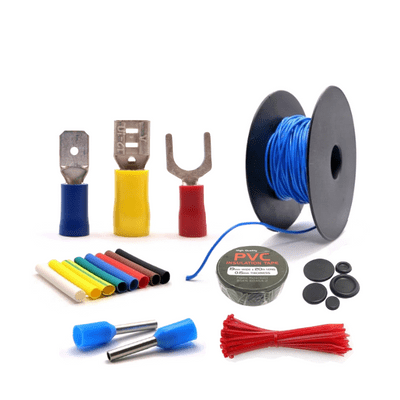

Electrical Products

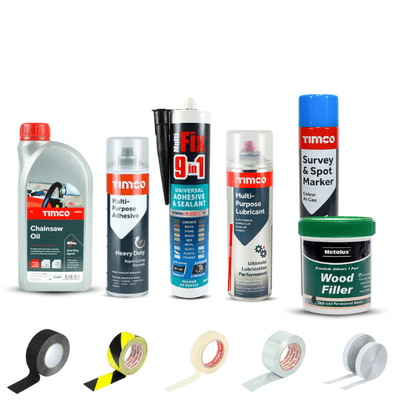

Tapes, Adhesives & Chemicals

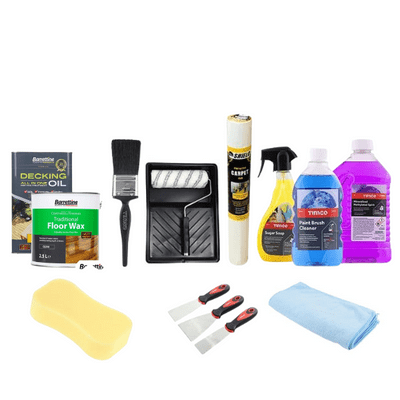

Painting & Decorating

Workwear, PPE & Safety

Haas ST-15Y Y-axis Lathe

THE BEST-VALUE Y-AXIS • BIG BORE CNC TURNING CENTRES IN THE INDUSTRY

Rigid, high-performance Y-axis CNC turning centre with a wide selection of available options for every workshop.
The Haas ST Series high-performance turning centres were designed from the ground up. The Y-axis CNC lathes provide setup flexibility, extreme rigidity, and high thermal stability.

The ST-15Y is an extra-small footprint, big-bore Y-axis CNC turning centre with a generous work envelope. The addition of Y-axis and live tooling allows milling, drilling, and tapping for increased machine capabilities. This machine offers the best performance for the money – the best value – in its class.

Extra-small footprint
BMT45 turret
Big-bore spindle
Y-axis milling, drilling, and tapping
High rpm and rapid speeds

CNC Lathe w/Y Axis; 12″ x 16″ (305 x 406 mm) max capacity, 2.5″ (63.5 mm) bar, 16″ (406 mm) swing, ±2.00″ (±50.8 mm) Y-axis travel, 20 hp (14.9 kW) vector drive, 4000 rpm, A2-6 spindle, 8.3″ (210 mm) chuck, 12-station BMT45 turret, high-torque live tooling w/C axis, 15″ colour LCD monitor, memory lock keyswitch, spindle orientation, USB port and rigid tapping. Standard toolholder kit included.

Haas UMC-750 5-Axis

5-AXIS MACHINING CENTRE FOR EVERYONE

What Do You Want to Create Today?

Our best-selling 5-axis Machining Centre is an effective means to reduce setups. This increases accuracy for multi-sided and complex parts. The Haas UMC Series machines are cost-effective solutions for 3+2 machining together with simultaneous 5-axis machining.

The UMC-750 has an integrated high-speed, dual-axis trunnion table. In addition, its 500 mm platter features standard T-slots. Not to mention a precision pilot bore adds versatility for vices.

5-axis simultaneous machining
Powerful inline direct-drive spindle
High-speed trunnion table
Includes Wireless Probing System

5-Axis Universal Machining Centre; 762 x 508 x 508 mm, with 500 mm Integrated 2-Axis Trunnion Rotary Table, 40 taper, 30 hp Vector Drive, 8,100 rpm (15k opt.) Direct-Drive, 30+1 Side Mount Tool Changer (50+1 opt.) (Servo-Driven High Speed), 22.9 m/min Rapids, Spindle Orientation, Macros, Coordinate Rotation & Scaling, Wireless Intuitive Probing System (WIPS), High-Speed Machining, Programmable Coolant Nozzle, Chip Conveyor, Dynamic Work Offsets (DWO), Tool Centre Point Control (TCPC), Second Home Button, Colour Remote Jog Handle, Power-Failure Detection Module, 1 GB Memory, 15″ Colour LCD Monitor, USB Port, Memory Lock Keyswitch, Rigid Tapping and 208 litre Flood Coolant System.

Haas TM-0P Toolroom Mill

LARGE TRAVELS. BIG CAPABILITIES. SMALL PRICES.

The TM-0P is the smallest and most affordable Haas TM-P Series CNC Toolroom Mills. Its operational width is 500 mm narrower than the TM-1P.

The TM-P models include a 10-pocket automatic tool changer, a faster spindle, and higher rapids. The CNC Toolroom Mill Series is the true definition of value; they provide full CNC capabilities at affordable prices.

The TM Series CNC Toolroom Mills are affordable and easy to use. Equally important, they offer the precision control of the Haas CNC system. They use standard 40-taper tooling and are very easy to learn and operate. Moreover, they are the perfect option for colleges and companies transitioning to CNC.

10-Pocket Tool Changer
6,000 rpm Spindle
Chip Auger
Operates on single- or three-phase power
Conversational programming system
User-friendly Haas control
Affordable full CNC capabilities
HaasConnect remote monitoring
Made in the USA

TM-0P CNC Toolroom Mill; 508 x 305 x 406 mm, 40 taper, 7.5 hp vector drive, 6000 rpm, 10-pocket automatic tool changer, full enclosure, chip auger, Visual Programming System, power-failure detection module, 1 GB program memory, memory lock keyswitch, 15″ colour LCD monitor and USB port, Ethernet interface and 76 litre flood coolant system.

Haas VF-4SS Super Speed VMC

THE BEST-VALUE, HIGH-PERFORMANCE HIGH-SPEED VMCS AVAILABLE TODAY

A Wide Range of Sizes and Features to Fit Any Shop’s Needs – High-Performance, High-Speed VMCs
Haas offers a wide range of VF Series CNC vertical machining centres to match any size and production requirement. Regardless of your needs, there’s a High-Performance High-Speed VMC just right to meet the demands of your machine shop.

Every VF Series machine provides outstanding features at an excellent price. By the same token, there are a wide range of available options to customise your machine to your exact needs. Not to mention all Haas machines are designed and built in California, USA.

The Haas high-performance Super-Speed vertical machining centres provide the high spindle speeds, fast rapids, and quick tool changes necessary for high-volume production and reduced cycle times. Each SS machine features a 12,000-rpm, inline direct-drive spindle, an ultra-fast side-mount tool changer, and high-speed rapids on all axes.

High-power, direct-drive spindle
Customisable to your needs
Our flagship model
Made in the USA

VF-4SS Super-Speed Vertical Machining Centre; 1270 x 508 x 635 mm, 40 taper, 30 hp vector drive, 12,000 rpm, direct-drive, high-speed 30+1 side-mount tool changer, 35.6 m/min rapids, power-failure detection module, 1 GB program memory, 15″ colour LCD monitor, USB port, Ethernet, memory lock keyswitch, rigid tapping and 208 litre flood coolant system.

Haas VF-2SSYT Super Speed VMC

THE BEST-VALUE, HIGH-PERFORMANCE HIGH-SPEED VMCS AVAILABLE TODAY.

Haas offers a wide range of VF Series CNC vertical machining centres to match any size and production requirement. Regardless of your needs, there’s a High-Speed VMC just right to meet the demands of your machine shop.

Every VF Series machine provides outstanding features at an excellent price. By the same token, there are a wide range of available options to customise your machine to your exact needs. Not to mention all Haas machines are designed and built in California, USA.

The Haas high-performance Super-Speed vertical machining centres provide the high spindle speeds, fast rapids, and quick tool changes necessary for high-volume production and reduced cycle times. Each SS machine features a 12,000-rpm, inline direct-drive spindle, an ultra-fast side-mount tool changer, and high-speed rapids on all axes.

The VF-2SSYT offers more Y-axis travel than our very popular VF-2SS.

Extended Y-axis travel
High-power, direct-drive spindle
Customisable to your needs
Our flagship model
Made in the USA
VF-2SSYT Super-Speed Vertical Machining Centre; 762 x 508 x 508 mm, 40 taper, 30 hp vector drive, 12,000 rpm, direct-drive, high-speed 30+1 side-mount tool changer, 1400 ipm (35.6 m/min) rapids, power-failure detection module, 1 GB program memory, 15″ colour LCD monitor, USB port, Ethernet, memory lock keyswitch, rigid tapping and 208 litre flood coolant system.

Haas Pallet Pool Systems

HIGH-VOLUME PRODUCTION, UNATTENDED OPERATION

Whether you’re doing high-volume production runs, high-mix/low-volume machining, or just want to run lights-out, our fully integrated pallet pool systems can boost your productivity. They integrate seamlessly with the Haas control, which includes a simplified Pallet Schedule Table that allows pallet-scheduling functions from a single dedicated screen.

The pallets can be scheduled individually according to priority and sequencing requirements, allowing high-priority parts to be machined first or staged more often. Completed pallets are returned automatically to the holding location, or can be sequenced to a protected operator station for immediate unloading and re-loading.

Haas Robot Packages

The Haas Robot Packages are fully integrated, plug & play, robot systems for Haas machines. The systems are controlled entirely from the Haas control.

Includes: 6-axis robot, mounting stand, software interface for direct control through the Haas machine, electrical interface box, safety guarding, and all necessary solenoids, hardware, and cables.

All-inclusive design, with plug-and-play capabilities
Interfaces directly with the Haas control
All set up and operation is done through the Haas control and remote jog handle
Single gripper included
Includes CE/UKCA compliant safety guard fencing
No need for additional M-code outputs, or the complex PLC connections used by 3rd-party integrators

Haas UMC-750 & HRP-2 Robot Demo

This video demonstrates both the cutting and robot loading capabilities of this machine and robot combination.

Haas TM-0P Toolroom Mill overview

Here's a quick introduction to some of the most important aspects of the brand-new TM-0P Toolroom Mill.
The TM-0P is the smallest and most affordable of the Haas TM Series Toolroom Mill; it's productive, easy to use, and offers the precision control of the Haas CNC system.

Click the link below to get to the TM-0P web page: https://www.haas.co.uk/machines/tm-0p

Haas CNC Vertical Mills overview

It's no secret that Haas makes lots of different vertical machining centres. This video is all about getting your head around the purpose of each series of VMCs Haas makes.

For more info visit the Haas UK website here: https://www.haas.co.uk

Haas TM-0P Toolroom Mill cutting demo

New TM-0P Toolroom Mill in action. Check out this short cutting demo we shot at the factory.

Haas VF-2SSYT with 3+1 Pallet Pool

Ready to view at our UK showroom VF-2SSYT with Pallet Pool. The new 3+1 pallet pool for the Haas VF-2YT Series VMCs is perfect for high-volume production runs, or high-mix/low-volume machining. The pallets – 914 x 457 mm with bolt-hole pattern – can be scheduled individually according to priority and sequencing requirements, allowing high-priority parts to be machined first or staged more often. Completed pallets are returned automatically to the holding location, or can be sequenced to a protected operator station for immediate unloading and re-loading.

For more info: https://www.haas.co.uk/pallet-pool-systems

Haas ST-15Y with BMT45 Turret Cuts Steel Demo Part

The Haas ST-15Y is a great way to get Y-axis turning productivity into your shop while taking up minimal floor space. And now Haas is adding another really good reason to add an ST-10Y or ST-15Y in your shop. The BMT45 turret option gives increased rigidity and performance in your Y-axis milling and drilling operations.

Check out the turning and milling operations in the video and then click here to reach the ST-15Y page at haas.co.uk/lathes/st-15y/

Haas Pallet Pool at a customer

Haas recently had the opportunity to visit the TooHighPSI workshop and talk with Mike Jr. about the high-performance parts they're making and how Haas machines and tooling fit into their manufacturing program.

See the Haas Pallet Pool Systems on our website: https://haas.co.uk/pallet-pool-systems/

Haas CNC Guide

See the latest high-performance CNC technology in this downloadable guide.

Shrink Fit Technology – Power Clamp

For years, HAIMER has been leading in the development of inductive shrink technology for tool holders. Many patents, mainly in the area of inductive coils, are visible proof for innovation and progress.

The patented coil technology in conjunction with the intelligent power electronics form the core of HAIMER shrink fit technology.

Perfectly coordinated assembly groups and electronic components make sure that only the clamping area of the chuck is heated in the shrinking process.

This reduces the shrinking and cooling cycle to a minimum.

3D-Sensors and Centering Devices

The HAIMER 3D-Sensors are very precise and wide-ranging measurement devices for milling and EDM machines (isolated probe tip). They are clamped into a tool holder and inserted into a milling spindle and make it possible to position the spindle axis exactly on the edges of the workpiece. This allows for zeros to be set and the length to be measured quickly and easily. You may approach in any direction (X-, Y-, Z-Axis). When the dial gage shows zero, the spindle axis is exactly on the workpiece edge.

Only the HAIMER 3D-Sensor allows for the edge to be found on the first attempt. No calculating of the probe’s ball diameter is necessary – just Zero it out! Problems with mathematics or calculations are eliminated, allowing for fewer operator errors.

By using the HAIMER Centro centering bores and arbors is quick and precise.

Presetting Technology – Microset

Maximum precision for all kind of requirements

The efficient tool presetting equipment from HAIMER Microset optimises your machining processes from the ground up.

Improve your tool life, generate better surface finishes and boost overall process reliability in your production.

Modular Balancing Technology – Tool Dynamic

The spindle speed of modern machine tools have increased on a continuous basis in the last few years in order to achieve higher cutting volumes and machine in a profitable manner. The increases have also raised the demands for the tools and holders used, because the higher spindle speeds make the effects of imbalance increasingly more noticeable. The consequences are vibrations, bad surface finish and shorter tool life.

Only the high-precision balancing of tools and tool holders can make the complete capacity of the machines tool with regards to speed, cutting volume and produced surface finish accessible. Because balancing provides for fewer vibrations. It reduces wear of the spindle and tool, reduces the downtimes and increases process security.

Universal Cutting Tools

HAIMER solid carbide end mills for machining steel, stainless steel and cast iron materials are available in a broad range of geometries and cutting edge designs. Latest PVD coating supply a maximum wear protection. The high shank quality, the run-out accuracy as well as the fine-balancing < 1gmm guarantee maximum precision during machining. The Safe-Lock™ tool shank offers maximum pull-out protection and cutting volume. With Duo-Lock™, the modular interface of the next generation for solid carbide milling heads, HAIMER offers a very flexible and universal tooling system. Due to the high stability of the interface, you can achieve the similar high performance of the latest generation of solid carbide end mills, but low tooling costs. In combination with the Duo-Lock™ Monoblock holders and the Duo-Lock™ shank extensions you have maximum flexibility and therefore always find the right solution for your application.

Tool Holders

The right tool clamping technology for every kind of machining operation: HAIMER Tool Holders.
During machining, specific demands for tool holding are laid down by each industry and application. The range varies from high-speed cutting to heavy roughing.
With the HAIMER tool holders, HAIMER offers the right solution and tool clamping technology for all specific requirements. Therefore, each year we invest approximately 10 percent of our turnover in research and development.
Our primary interest is to offer our customers sustainable solutions which enable a competitive advantage. This way, you can always maintain your competitive advantage in machining - thanks to the HAIMER tool clamping and tool holding technology.

HAIMER Teaser

We are an established system provider for complete tool management solutions. The basis is the high-quality product range, which extends from a wide variety of tool holders, shrinking and balancing technology, tool presetting devices and carbide end mills.
Based on the motto "Precision Engineering meets Digitization", we will demonstrate at MACH Exhibition 2024 in Birmingham how modern tool management works.

5 Axis Machining: Panther | HAIMER | Open Mind

Teamwork at its best! Together, HAIMER and OPEN MIND demonstrate how complex milling operations can be mastered in a powerful and dynamic way!
HAIMER took this opportunity to demonstrate the performance capabilities of its tools and tool holders by creating a model panther. OPEN MIND took on the challenging programming task using their hyperMILL® software.

Material: aluminum
Machine: DMG MORI HSC70 linear
Tools & Holder: Haimer
5-Axis programming: hyperMILL® from Open Mind

SPANNTOP nova Chucks

HAINBUCH quality at a price that makes sense.

The SPANNTOP nova chuck delivers genuine HAINBUCH quality at a more accessible price point, making it the smart choice for manufacturers who want proven performance at a sensible price in 2026.

- Excellent concentricity, rigidity and holding power
- Optimised for modern, high-speed machine tools
- Fully compatible with the HAINBUCH SYSTEM quickchange adaptions
- Original, reliable and proven HAINBUCH SPANNTOP design

Instead of compromising with replications of our design, SPANNTOP nova gives you the real engineering, real reliability and real support at a price that makes choosing the original an easy decision.

SPANNTOP nova. Smart value. Proven quality.

MANDO G211

Built for gears. Engineered for precision.

When you’re cutting gears, your clamping system needs to be compact, rigid and ultra-reliable.

The MANDO G211 delivers all that and more.

Purpose-built for gear manufacturing, the MANDO G211 combines precision with power in a compact package.

Why engineers trust the MANDO G211:
- Internal clamping from Ø 6.5 – 125 mm
- Pull-back actuation for secure, stable holding
- Run-out accuracy ≤ 0.01 mm
- 3 end-stop levels for fast, repeatable setups
- Vulcanized clamping elements give incredible vibration dampening
- Integrated flushing channels to keep chips away and coolant flowing
- Compact and slim enough for sub-spindles

Compact. Slender. Precise.

The MANDO G211 is everything gear machining demands, delivering powerful grip and high accuracy, even in the tightest of spaces.

TOPlus Chucks

Unlock your machine’s full potential!

If you're pushing for higher performance, faster changeovers and maximum precision then our TOPlus chuck delivers.

With 25% more clamping force than any other HAINBUCH chuck, the TOPlus chuck is as strong as it gets.

Its patented hexagonal geometry offers extreme clamping force, torque transmission, exceptional dirt resistance and seamless HAINBUCH SYSTEM compatibility.

Why engineers choose TOPlus:

- 25% more clamping force for rock-solid holding
- Ultra-precise: ≤ 0.005 mm repeatability
- Unmatched torque transmission, ideal for demanding machining
- Hexagonal design repels swarf and coolant for longer life
- Compatible with the HAINBUCH SYSTEM for fast changeovers
- Lower mass = better tool accessibility and faster spindle acceleration

Whether you're chasing tighter tolerances or shorter setup times, TOPlus gets the most out of your machine every time.

MAXXOS Mandrels

Serious about internal clamping? Step up to MAXXOS.

When you're machining complex or heavy-duty components, precision is a necessity. That’s why engineers looking for maximum performance, repeatability and rigidity choose the MAXXOS mandrel system from HAINBUCH.

Engineered with a patented and award winning hexagonal pyramid geometry, MAXXOS delivers:

- Up to 155% more transmissible torque than traditional round mandrels
- Up to 57% greater rigidity for tighter tolerances and reduced vibration
- Outstanding performance on short clamping surfaces
- Improved tool life and surface finishes thanks to better damping
- The T212 is ideal for blind bores, incorporating a drawbolt free design.

Whether you're cutting gears, precision components or high-volume production parts, MAXXOS unlocks more from your machine. More grip and more precision.

It's just better!

vario-Quick Endstop Solution

Vario-Quick System: Flexible end-stop system to save time and money.

Clamping against an end-stop is the most effective way to enhance stability.

While our chucks include an end-stop as standard, creating a custom solution for every part isn’t always practical. That’s where the HAINBUCH vario-quick comes in. The adjustable end-stop system designed for ultimate flexibility.

How It Works:
- Choose the right end-stop diameter from our standard set.
- Adjust the depth in 1mm increments using a simple threaded spindle.

Key Benefits:
- Flexible end-stop adjustment in both depth and diameter.
- Faster set-ups, reduced downtime.
- A cost-effective solution that saves time and money.
- Available for chucks from size 32 to 100 as standard.

Save time and money by negating the need to manufacture bespoke end-stops for every job.

centroteX

centroteX makes it easy to switch clamping devices with it’s plug and play functionality.

Never has it been simpler, faster or more efficient to switch your workholding.

Changeover in under 2 minutes without the need for realignment. Experience perfect runout every time.

centroteX helps to eliminates downtime and maximise productivity.

CentroteX gives your lathes, milling machines and grinding machines the flexibility you need to stay ahead of the competition.

No longer are your clamping devices locked to specific spindle nose connections, as centroteX utilises a common machine interface.

Attach any chuck, mandrel or jaw module to any machine, even across different manufacturers and change over in under 2 minutes.

Take on high-variety, small-batch jobs without extra setups or duplicate equipment.

Keep your machines running, maximize spindle time and say yes to more work.

Changeover like an elite pit crew and outpace the competition with centroteX from HAINBUCH.

HAINBUCH system

Every minute your machine isn’t running, it’s losing money and during a typical 1-hour changeover, it’s not running at all.

That’s where the HAINBUCH System changes the game.

The adaptive system for your chuck that lets you switch from from chuck to mandrel to jaw module all in under 2 minutes.

Fast, flexible, accurate changeovers, keeping your spindle turning and your profits flowing.

centroteX

centroteX makes it easy to switch clamping devices with it’s plug and play functionality.

Never has it been simpler, faster or more efficient to switch your workholding.

Changeover in under 2 minutes without the need for realignment. Experience perfect runout every time.

centroteX helps to eliminates downtime and maximise productivity.

CentroteX gives your lathes, milling machines and grinding machines the flexibility you need to stay ahead of the competition.

No longer are your clamping devices locked to specific spindle nose connections, as centroteX utilises a common machine interface.

Attach any chuck, mandrel or jaw module to any machine, even across different manufacturers and change over in under 2 minutes.

Take on high-variety, small-batch jobs without extra setups or duplicate equipment.

Keep your machines running, maximize spindle time and say yes to more work.

Changeover like an elite pit crew and outpace the competition with centroteX from HAINBUCH.

HAINBUCH SYSTEM

centroteX

Tungsten Carbide Nozzles

Tungsten carbide nozzles are high-performance components engineered for exceptional wear and erosion resistance in high-pressure spraying and abrasive blasting applications

Tungsten Carbide Bushings

Tungsten carbide bushings are ultra-hard, wear-resistant sleeves designed to protect rotating shafts and extend equipment lifespan in harsh industrial environments

Tungsten Carbide Positioning Parts

Includes: Locating Pins, V-guides, High-precision Bushings, Precision Sliders, and Alignment Blocks.

Tungsten Carbide Probe

High-precision tungsten carbide probe used for delicate scribing, marking, and probing where extreme tip durability is required

Tungsten Carbide Seal Rings

The core components of any mechanical seal system.

Tungsten Carbide Guide Dies & Eyelets

Tungsten Carbide Guide Dies, often referred to as eyelets or guide bushings, are high-precision wear-resistant components designed to position, guide, and protect metal wires, cables, or fibers during the production process. Unlike drawing dies, guide dies do not reduce the diameter of the material; instead, they ensure smooth travel and precise alignment while protecting both the wire surface and the machinery from friction and wear.

Tungsten Carbide Roll Rings

Tungsten Carbide Roll Rings mainly used for continuous rolling and processing of rebars and wire rods.

Tungsten Carbide Compacting Dies

Tungsten Carbide Compacting Dies ar used for forming powdered materials into shape through compression.

Tungsten Carbide Punches

Tungsten Carbide Punches, also known as carbide punching pins or nibs; Punches constitute the core wear components within cold-forming dies and progressive dies.

Tungsten Carbide Stamping Dies

Mainly used for punching and blanking of sheet metal parts.

Tungsten Carbide Reduction Dies

A highly durable tungsten carbide die that ensures extreme dimensional precision and superior surface finish during the metal reducing process.

Tungsten Carbide Cold Heading Dies

Tungsten carbide cold heading and cold extrusion dies are high-strength industrial tools used to shape metal parts, like bolts and fasteners, at room temperature through intense pressure.

Tungsten Carbide Drawing Die

Tungsten Carbide Drawing Dies widely used field for cemented carbide, primarily utilized for thinning metal wires, tubes, and rods.

Tungsten Carbide Bar Drawing Dies

Tungsten Carbide Drawing Dies widely used field for cemented carbide, primarily utilized for thinning metal wires, tubes, and rods.

Tungsten Carbide Tube Dies

Tungsten Carbide Tube Drawing Dies Specifically designed for reducing the outer diameter or wall thickness of metal tubes (e.g., copper pipes, stainless steel seamless tubes).

HAO CARBIDE Corporate Video

A brief introduction of HAO CARBIDE

HAO CARBIDE CO., LTD-BROCHURE

HAO CARBIDE CO., LTD-BROCHURE

AQuire V4 and conTEST

The Perfect Team for Reliable Vibroacoustic End-of-Line (EoL) Testing
In modern production environments, reliable quality decisions depend on the seamless integration of data acquisition and intelligent analysis. AQuire and conTEST are designed as a perfectly aligned team to meet these requirements for vibroacoustic testing applications.
AQuire serves as a compact and flexible data acquisition front-end, enabling precise measurement of sound and vibration signals directly at the test stand or production line. With support for multiple sensor types and real-time data streaming, it provides a stable, accurate foundation for capturing high-quality measurement data in industrial environments.
Building on this foundation, conTEST transforms raw measurement data into actionable quality information. The software provides automated test execution, AI-assisted signal evaluation, and robust pass/fail classification. Its intuitive configuration and powerful analysis including psychoacoustic analysis capabilities enable users to define meaningful quality criteria and ensure repeatable, objective results.

Together, AQuire and conTEST form an integrated solution that covers the entire testing workflow — from signal acquisition to decision-making. The tight integration between hardware and software minimizes setup effort, reduces sources of error, and enables fast cycle times, making the combination particularly suitable for End-of-Line (EoL) testing and production monitoring.

By combining accurate measurement technology with intelligent evaluation, AQuire and conTEST help manufacturers ensure consistent product quality, detect deviations early, and uphold high standards throughout the entire production process. As a coordinated system, they provide a reliable, scalable, and future-proof approach to vibroacoustic quality assurance.

SQobold

HEAD VISOR (Software)

HEAD VISOR (Hardware)

HEADlab

ArtemiS SUITE

BHS II Binaural Headset

conTEST EoL

AQuire V4

HEIDENHAIN VT122 Vision Tool Inspection

Touchless in-process measurement
Non-contact measurement makes these camera systems ideal for sensitive edges. With tool presetting and in-process inspection, the VT 122 supports end mills, ball-nose cutters and drill bits at least 1 mm in diameter. The VT 121 can check tools for breakage.
VT 121, VT 122
Vision systems for tool measurement and inspection
Two cameras with a ring light and lateral illumination
VT 122: additional illumination for in-process measurement
Compressed-air inlet for cleaning the tool and vision system
System control and tool evaluation through the Visual Tool Check software
Automation via VTC cycles
Interface: Gigabit Ethernet
Protection rating: IP66/IP68

HEIDENHAIN TS & TT 460 Touch probes

Workpiece touch probes
Quickly and reliably master workpiece dimensional accuracy: HEIDENHAIN workpiece touch probes enable setup, measurement, and inspection functionality directly inside the machine tool. When the stylus is deflected upon contact with a workpiece surface, a switching signal is sent to the control via cable, radio, or infrared transmission, depending on the model.

HEIDENHAIN TD 110 Tool Breakage Detector

The new TD 110 tool breakage detector from HEIDENHAIN inspects tools with a minimum diameter of 0.4 mm and breakage lengths of down to 2 mm. Its inductive sensor enables touchless inspection directly inside the machine envelope while the spindle is rotating at operational speed. Significant time and cost benefits are the results. What’s more, the robust and compact TD 110 ensures greater process reliability.

HEIDENHAIN StateMonitor

Collect, evaluate, and visualize machine data with StateMonitor
Optimize your production environment through a real-time view of your manufacturing processes. StateMonitor makes this possible, letting you intuitively monitor your machines on a PC, laptop, tablet, or smartphone. Simply open the “Status” view for an overview of machine statuses, program duration, tool usage, and machine signals.

HEIDENHAIN TNC7 CNC Control

HEIDENHAIN is giving machine manufacturers and experts at the machine new capabilities that are intuitive, task-focused, and customizable. As the next level in CNC control, the TNC7 supports the user at every stage along the way, from initial design to the finished workpiece.

HEIDENHAIN TD 110 Tool Breakage Detector

The new TD 110 tool breakage detector from HEIDENHAIN inspects tools with a minimum diameter of 0.4 mm and breakage lengths of down to 2 mm. Its inductive sensor enables touchless inspection directly inside the machine envelope while the spindle is rotating at operational speed. Significant time and cost benefits are the results. What’s more, the robust and compact TD 110 ensures greater process reliability.

HEIDENHAIN StateMonitor

Collect, evaluate, and visualize machine data with StateMonitor
Optimize your production environment through a real-time view of your manufacturing processes. StateMonitor makes this possible, letting you intuitively monitor your machines on a PC, laptop, tablet, or smartphone. Simply open the “Status” view for an overview of machine statuses, program duration, tool usage, and machine signals.

HEIDENHAIN TNC7 CNC Control

HEIDENHAIN is giving machine manufacturers and experts at the machine new capabilities that are intuitive, task-focused, and customizable. As the next level in CNC control, the TNC7 supports the user at every stage along the way, from initial design to the finished workpiece.

HEIDENHAIN MSY Synchronous Motors

A tailor-made solution for machine tools: the new synchronous motors from HEIDENHAIN round off the drive technology portfolio for feed axes and auxiliary axes. Drive solutions with MSY motors guarantee high surface quality of the workpieces to be machined.

TNC Programming Stations

What’s the purpose of a programming station?
As easy as it is to write a part program on a TNC at the machine while a different part is being machined, short reloading times or high machine utilization may hinder attentive programming work on the shop floor. With a HEIDENHAIN programming station you have the capability to program just as you do at the machine, but away
from the noise and distractions of the shop floor.

Bespoke ERP Development

Hero Solutions delivers fully bespoke ERP systems designed around the way your business actually operates. With 25 years of experience, we build tailored platforms that unify processes, eliminate inefficiencies and provide complete operational visibility from initial enquiry through to invoicing and beyond.

Unlike off the shelf ERP software, our solutions are developed from the ground up to match your workflows, integrating seamlessly with existing systems and adapting as your business evolves. Whether you need to streamline internal operations, improve data accuracy or connect multiple departments into a single source of truth, we create systems that scale with you.

Our approach combines consultancy, design and development to ensure every solution delivers measurable impact. The result is a powerful, flexible ERP platform that simplifies complexity, increases productivity and supports long term growth.

KEY FEATURES :

- Fully tailored ERP systems built to your exact requirements

- End to end process integration across departments

- Seamless integration with existing software and third party tools

- Scalable architecture that grows with your business

- Real time reporting and operational visibility

- Workflow automation to reduce manual effort and errors

IDEAL FOR:
Businesses seeking to replace rigid off the shelf systems, unify disconnected processes or gain greater control over operations through a fully customised ERP platform.

HRD Dryers

The Hertz HRD Series are refrigerated compressed air dryers designed to deliver clean, dry air with low pressure loss and high efficiency. Featuring compact construction, digital controls and R‑134a refrigeration technology, they cool compressed air to a low dew point (~+3 °C) to protect equipment, improve productivity and reduce moisture‑related issues in industrial and workshop systems.

Nitrogen Generation

Hertz nitrogen generators produce on‑site high‑purity nitrogen (up to 99.999 %) using advanced PSA technology, delivering continuous, clean and dry nitrogen for industrial, packaging, food, chemical and other applications while eliminating cylinder supply costs and minimising maintenance. Compact, automated and efficient, these systems are tailored for reliable, energy‑smart nitrogen production with integrated controls and monitoring.

Frecon Plus Laser

The Hertz Frecon Plus Laser Series delivers high‑pressure, energy‑efficient rotary screw air compressors engineered specifically for laser cutting applications, offering stable, clean compressed air at up to 20 bar with a compact, highly reliable design that enhances cut quality and reduces operating costs.

Impetus

The Hertz Impetus Series comprises next‑generation oil‑injected, two‑stage rotary screw compressors designed for superior energy efficiency, high airflow and reduced operating costs. With both fixed and variable speed options across a wide power range (22–315 kW), Impetus machines deliver up to 65 % energy savings with advanced motors and modern control systems — ideal for industrial compressed air applications seeking efficiency and reliability.

HGS-HSC

The Hertz HGS‑HSC Series offers compact, reliable oil‑injected rotary screw compressors for small to medium industrial applications. Designed for high efficiency, low energy use, and easy maintenance, this series ensures dependable performance in workshops and production environments.

Frecon Plus

The Hertz Frecon Plus Series represents a high‑performance range of variable‑speed, oil‑injected rotary screw air compressors engineered for energy‑efficient industrial compressed air solutions. Designed for flexible and reliable operation across capacities from 5.5 kW to 315 kW, these compressors feature directly coupled drives with frequency control to optimise energy use and significantly reduce operational costs. Key benefits include energy savings of up to 35 %, broad working pressure range, constant output pressure, soft start capability, and robust construction for long service life. Suitable for dynamic demand environments, the Frecon Plus Series combines advanced engineering with ease of maintenance and flexible control options, making it ideal for demanding manufacturing and production applications.

HRD Dryer

The Hertz HRD Series are refrigerated compressed air dryers designed to deliver clean, dry air with low pressure loss and high efficiency. Featuring compact construction, digital controls and R‑134a refrigeration technology, they cool compressed air to a low dew point (~+3 °C) to protect equipment, improve productivity and reduce moisture‑related issues in industrial and workshop systems.

HGS-HSC Series

The Hertz HGS‑HSC Series delivers a compact, robust range of fixed‑speed, oil‑injected rotary screw air compressors engineered for small to medium‑sized businesses and workshops seeking reliable and cost‑effective compressed air solutions. With power ratings from approximately 2.2 kW up to 75 kW and pressure options from 7.5 bar to 13 bar, this series offers a small footprint, durable construction, and simplified maintenance, making it ideal for workshop environments and continuous industrial use. Key features include a next‑generation rotary screw air end for high efficiency and low energy consumption, efficient motors, electronic control systems, optional tanks and dryers on select models, and user‑friendly servicing design. Built to international quality standards, the HGS‑HSC Series ensures dependable performance and minimal downtime for a wide range of applications.

Frecon Plus Catalogue

The Hertz Frecon Plus Series represents a high‑performance range of variable‑speed, oil‑injected rotary screw air compressors engineered for energy‑efficient industrial compressed air solutions. Designed for flexible and reliable operation across capacities from 5.5 kW to 315 kW, these compressors feature directly coupled drives with frequency control to optimise energy use and significantly reduce operational costs. Key benefits include energy savings of up to 35 %, broad working pressure range, constant output pressure, soft start capability, and robust construction for long service life. Suitable for dynamic demand environments, the FRECON PLUS Series combines advanced engineering with ease of maintenance and flexible control options, making it ideal for demanding manufacturing and production applications.

Laser Trackers

Hexagon’s laser tracker systems lead the field in terms of the accuracy, reliability and durability of portable coordinate measuring machines including faster and easier direct scanning capabilities.

Handheld 3D scanners

3D digital capture of shapes and surfaces using lasers is an effortless yet precise process. Hexagon’s solutions offer quality control of geometries and surface, but also for reverse engineering, fit and finish, and assembly applications.

CMMs

Whether you are looking for an entry-level model or already have experience with coordinate measurement systems and are now looking to improve quality assurance or increase inspection capacity – Hexagon has the solutions and expertise needed to embed quality in your manufacturing.

Portable measurement arms

Portable measuring arms allow you to take measurements directly in the manufacturing environment, where process improvements are the most beneficial.

With the widest-ever selection of compatible scanning and probing devices, the latest Hexagon Absolute Arm range pushes the boundaries of portable measuring arm use, opening up new applications in harsh environments, as well as productivity and quality gains across the board.

VEPOSE

VEPOSE is an add-on for CALIPRI CB20 measurement systems. It determines the position of the vehicle on wheels or on the skid on a moving conveyor as well as during stop-and-go operation and transmits this information to subsequent robots for path correction.
With VEPOSE, you can reliably determine the exact position of each individual vehicle in all six dimensions. During conveyor operation, the conveyor system provides information about the next car body type to the VEPOSE system. The car body is measured by high-end stereo cameras positioned above it, and the measured point cloud is overlaid with stored reference data. The positional correction data calculated in this way is transmitted to the subsequent robots, enabling them to perfectly adjust their path movements for gap measurements to the actual vehicle position. This ensures the measurement accuracy of flush and gap measurements during assembly, even with highly variable vehicle positions.

CALIPRI C15

CALIPRI C15 adds extra flexibility to handheld laser gap measurement in production and assembly lines. The manual measurement system CALIPRI C15 is designed for flush and gap inspection on moving vehicle production lines, rework stations, and inspection stations, delivering consistently accurate results with minimal training effort and high speed. Available in two models, the CALIPRI C15 Fix is designed for stationary measuring stations, while the versatile CALIPRI C15 Flex offers mobile flexibility for a wide range of applications.

CALIPRI C14

The CALIPRI C14 enables correlation-free measurements across all production stages – ranging from in-line and near-line monitoring to off-line analysis for maximum precision. Thanks to its distinctive rotating movement, the compact CALIPRI C14 measuring system quickly examines highly complex profile shapes in just seconds. A variety of inspection techniques enable comprehensive assessment of flush, gaps, folded edges, design lines and other profiles.

CALIPRI CB20

The fully automatic CALIPRI CB20 system, designed for 100% inline inspection in final assembly, body-in-white, and paint shop environments, meets the most stringent cycle time and accuracy requirements. Compatible with any robot, the system features the patented Calibreeze technology and the proven CALIPRI Principle, allowing for precise optical measurements on all surface types.

CALIPRI C15

By providing additional flexibility, the CALIPRI C15 model enhances handheld measurement in production in or near assembly lines, making it ideal for various applications.

CALIPRI C14

Through its characteristic rotational movement, the CALIPRI C14 measuring system ensures precise and efficient testing, enabling rapid inspection of complex profile shapes.

CALIPRI CB20 Audi Sport Case study

CALIPRI CB20

Integrated with Calibreeze, the CALIPRI CB20 system is an automated solution that allows for optical measurements on all types of surfaces.

VEPOSE

VEPOSE is an add-on for CALIPRI CB20 measurement systems. It determines the position of the vehicle on wheels or on the skid on a moving conveyor as well as during stop-and-go operation and transmits this information to subsequent robots for path correction.

Product overview – CALIPRI solutions for aerospace industry

Product overview – CALIPRI flush & gap solutions for automotive industry

VISI (part of Hexagon Mould and Die Suite)

VISI is a CAD/CAE/CAM software for mould and die, giving 3D tool design, plastic flow analysis, stamping and multi-axis milling.

RADAN Bending (part of Hexagon Sheet Metal Fabrication Suite)

RADAN Bending, now part of DESIGNER, is Hexagon’s advanced off-line programming application for press brakes

RADAN (part of Hexagon Sheet Metal Fabrication Suite)

RADAN is a CAD CAM solution for sheet metal cutting, providing applications for punching, profiling and bending.

ESPRIT EDGE (part of Hexagon Production Machining Suite)

CAM for CNC machine tool programming for Swiss-type CNC machines and multitasking turning centers powered by artificial intelligence and driven with digital twin technology.

EDGECAM (part of Hexagon Production Machining Suite)

EDGECAM is a production CAM solution, combining the power of sophisticated toolpath generation with seamless CAD integration.

Hexagon Production Machining Suite

Are you ready to overcome day-to-day challenges with processes like design, tool path creation, and NC code validation? Hexagon’s suite of renowned software – including Designer, EDGECAM, ESPRIT, Datanomix and more – can serve your production needs and help you capture critical data while you run 24/7.

How does this suite of tools empower machine shops across industries in the manufacture of discrete parts, tools, and components? MTDCNC’s Rowan Easter-Robinson along with Hexagon's Zoltán Tomoga explain in this exclusive Technical Corner video.

Hexagon Sheet Metal Fabrication Suite

Hexagon have put together a brand-new suite of best-in-class products, including RADAN software at its core, to help sheet metal fabricators.

We’re talking greater operational efficiencies, minimised waste, and high-quality results delivered faster than ever before. These products enable you to create a secure process and make extremely safe tool paths efficiently and automatically.

Watch this MTD Technical Corner with Rowan Easter-Robinson of MTDCNC and Olaf Körner of Hexagon to find out how we're solving the challenges you’re facing today and in the future.

Hexagon Mould and Die Suite

A suite of dedicated CAD/CAM, engineering, and automation tools empowering mold and die and tool manufacturers to increase efficiency, reduce costs, and produce high-quality parts for their customers across industries ranging from automotive to aerospace and beyond.

◾ CAD/CAE for Plastic Injection Mold Design
◾ CAD/CAE for Progressive Die Design
◾ CAD for Manufacturing preparation
◾ CAM for CNC Machine Tool Programming
◾ Process Simulation, Verification & Optimization
◾ Automation & Collaboration Powered by Nexus

Hexagon Mould and Die Suite

The Hexagon Mould and Die Suite offers an Integrated workflow from design/engineering to manufacturing and automation including advanced predictive tools to streamline processes, cut costs, and achieve design and process optimisation, resulting in efficient, safe, and high-quality finishing toolpaths for a productive manufacturing environment

Hexagon Sheet Metal Fabrication Suite

A suite of best-in-class products offering an integrated workflow from design to quoting through production preparation, CAM and automation all the way to delivery and invoice while enhancing efficiency, reducing costs, and ensuring consistent quality from design to production.

Hexagon Production Machining Suite

A suite of software developed to empower machine shops to achieve operational excellence in the manufacturing of discrete parts, tools, and components with machine tools at any scale. From one-off prototypes to volume production, and across industries ranging from medical to aerospace and beyond.

Elite Pro Single Stage Regulator

Introducing the Hi-Lo Elite single-stage regulator, the latest breakthrough in gas regulation technology.

New Hi-Lo Elite Single Stage Regulator available in Oxygen, Propane, Acetylene, Argon and Argon CFH. This innovative regulator boasts an all new high impact pressure gauge cover, purposefully engineered to withstand up to 200 kilos of force, showcasing an unwavering commitment to prioritising operator safety. Meticulously designed with operator well being in mind.

The Hi-Lo Elite sets a new standard by offering durability and protection through its robust pressure gauge cover. This advanced feature emphasises the paramount importance of safety, making the Hi-Lo Elite stand out in gas regulation technology

Elite Pro Two Stage Regulator

Introducing the Hi-Lo Elite two stage regulator, the latest breakthrough in gas regulation technology

New Hi-Lo Elite Two Stage Regulator available in Oxygen, Propane, Acetylene, Argon and Argon CFH.This innovative regulator boasts an all new high impact pressure gauge cover, purposefully engineered to withstand up to 200 kilos of force, showcasing an unwavering commitment to prioritising operator safety. Meticulously designed with operator well being in mind.

The Hi-Lo Elite two stage regulator’s dependable performance sets a new standard for ensuring continuous and stable gas supply, particularly in critical welding operations.

The Hi-Lo Elite two stage regulator serves two vital functions. Firstly, it ensures a consistent outlet pressure, crucial for various industrial applications. Secondly, it guarantees a constant gas flow from full to empty cylinders, especially significant in tasks like welding high value materials. This feature is paramount to maintain uninterrupted gas flow, where the regulator’s stability becomes pivotal. It secures a reliable and unwavering supply of shielding gas throughout the entire usage duration of the cylinder.

UA-12 Cutting Machine

Key Features:
Ideal for light and heavy industrial use
Quick touch gas control system
Supplied with 1.8m length of distortion proof steel track
Adjustable travel speed - in forward and reverse to provide good, quality cuts.
Easy to use interface
Allows the operator to turn the supply on and off with one lever
All spares available.

Available in 110V and 230V

PNML Cutting Nozzle – British Made

Our British made PNML cutting nozzle are available in the following configurations:

1/8 - No.020207
1/16 - No.020203
1/32 - No.020201
3/32 - No.020205
3/64 - No.020202
5/64 - No.020204
7/64 - No.020206

Hi-Lo PNM nozzles are precision manufactured to give an efficient performance and before leaving the factory, each one is individually tested to ensure suction to the acetylene line, quality of the pre-heat flame and accuracy of the oxygen cutting stream.

Hi-Lo UK Elite black & gold premium welder’s gauntlet Kevlar stretched 14′

Hi-Lo premium cowhide grain leather palm with a seamless index finger for high dexterity. Cowhide split leather back and gauntlet cuff with straight thumb reinforced padded palm for comfort and grip. This welders glove is reinforced 100% cotton lining for extra heat resistance and comfort and heat-resistant Kevlar thread sewed. Perfect sizing according to EN-420 standard.

Key Features:
Cowhide grain leather palm
cow split leather back and cuff
100% cotton lined
Seamless index finger
Reinforced padded rest patch

Application:
Welding & cutting
Foundy Jobs
Heat Jobs
Mining & Construction
Oil & Gas
Metal Handling

Hi-Lo UK Flat handle Cutting Torch

Our British-made flat-handled cutting torches are manufactured to a high standard and are 100% fully tested and built to last with a lifetime warranty. There are two basic forms of hand cutting, the NM (Nozzle Mix) in which the fuel gas and oxygen are mixed in the nozzle and the Universal were the gases are mixed in the cutting torch head. Both versions can come as a “press to cut’’ or “release to cut” option. There is a wide range of lengths available from the standard 18”, 27” and 36”. Also, special requirements such as 3 metres are available upon request.

These cutting torches are of rugged construction and with a full range of spare parts and all torches are fully repairable.

Hi-Lo UK Cutting Torches are available with Acetylene or Propane nozzles.

Key Features:
British made
Conforms to EN ISO 5172
Manufactured under BS EN ISO 9001
Can be used with Acetylene & Propane Nozzles

New Kid on the Block – Elite Pro Introduction

Hi-Lo UK Product Catalogue

HQA 360

High QA is a modern, design-driven quality management platform purpose-built for manufacturing teams. The platform helps manufacturers streamline critical quality processes, including PPAP, First Article Inspection (FAI), inspection planning, and reporting by connecting design data, inspection results, and documentation into a single, traceable system.

With High QA, teams can generate ISO and AS-compliant reports (including AS9102), build inspection plans directly from design inputs, and eliminate the spreadsheet-driven workflows that cause errors, rework, and version-control issues. Centralized data management ensures full traceability across parts, processes, and production runs while improving collaboration between engineering, quality, and operations. Designed to scale from small teams to global enterprises, High QA integrates into existing manufacturing technology stacks and supports secure, database-driven workflows.

High QA 360

Manufacturing Quality, Linked to Design.
Stop managing quality in spreadsheets, emails, and paper. HQA 360 connects your quality planning, inspections, and reporting directly to the original 2D drawing or 3D model, so teams move faster with fewer errors, less interpretation and cleaner deliverables.

Dosatron Water Powered Injectors

The market leading Dosatron range of water powered injectors offer accurate, consistent & effective proportional dosing of liquid additives into water and are utilised in a wide range of diverse applications in many different market sectors. Since the Dosatron works volumetrically with water flow, proportionality of dose rate is maintained irrespective of fluctuations in water flow rate & pressure (within operating limits). Model selection generally depends upon water flow rate, dose rate requirements and the nature of the additive being dosed - we would be pleased to discuss specific opportunities in more detail.

Dosatron Water Powered Injectors for ATEX Applications

We offer a range of ATEX certified Dosatron units for accurate & effective proportional dosing of additives into water in hazardous areas. Visit our stand to discuss in more detail.

Dosatron Water Powered Injectors for Water & Wastewater Treatment

We offer a range of Dosatron water powered injectors for water & wastewater treatment including water chlorination, disinfection and dosing of flocculant & coagulant polymers for wastewater treatment. Like all Dosatrons, these offer consistent, accurate & efficient proportional dosing of additives into water without the need for electric power.

Dosatron Water Powered Injectors for Coolant Mixing

We are product to be once again exhibiting the market leading range of Dosatron water powered injectors, providing accurate & efficient proportional mixing of soluble oils into water without the need for electric power. Offering dose rates up to 25% (1 part additive to 4 parts water), the Dosatron range offers optimal coolant mixing solutions for use in metalworking & related applications.

NEW Dosatron D3IL10VVF

NEW D3 INDUSTRY LINE : The Ideal Dosing Pump to Ensure Perfect Mixing of your Cutting Oils.
DOSATRON presents the new D3 Industry Line (D3IL10), the best choice for the perfect emulsion of soluble oil in the mechanical industry.

– Maximum lubricant efficiency: Ensures optimum performance in creating a perfect emulsion.
– Universal compatibility: Compatible with all types of soluble oil, offering exceptional versatility.
– Reliable, consistent dosing: Guarantees precise, consistent dosing for optimum lubricant application.
– Optimized consumption: Help reduce water and oil consumption with this innovative pump.

NEW D3IL10VVF

NEW D3 INDUSTRY LINE : The Ideal Dosing Pump to Ensure Perfect Mixing of your Cutting Oils.
DOSATRON presents the new D3 Industry Line (D3IL10), the best choice for the perfect emulsion of soluble oil in the mechanical industry.

- Maximum lubricant efficiency: Ensures optimum performance in creating a perfect emulsion.
- Universal compatibility: Compatible with all types of soluble oil, offering exceptional versatility.
- Reliable, consistent dosing: Guarantees precise, consistent dosing for optimum lubricant application.
- Optimized consumption: Help reduce water and oil consumption with this innovative pump.

Metalworking

From extraction to finished parts, metals are subjected to many transformations before reaching their final use (automotive sector, aeronautics sector, railway sector, industrial valves and pumps, general mechanics, precision mechanics etc...).

Some process steps require the use of water with the addition of additives: cutting fluid for machining, detergent for cleaning and degreasing etc....

Although water quality plays a significant role in these applications, the performance of additive dosing is crucial, contributing to product quality and optimising operating costs.

In addition to being the pioneer of proportional dosing without electricity, DOSATRON has been responding to dosing problems in metalworking for more than 45 years. Thanks to its easy-to-use technology, involving low maintenance costs and capable of processing most of the additives in the industry, DOSATRON offers a technical solution that is both efficient and cost-effective, particularly for viscous additives requiring high incorporation rates.

APPLICATIONS:
- Soluble oils
- Posting
- Vibro-abrasion
- Degreasing
- Legionella treatment

E1 Functional Demo Machine

Hiwin Total Soultion: Bridge axis with Z-axis using Hiwin AC motor, Hiwin E1 Drive .

HIWIN i4.0BS® Intelligent 4.0 Ballscrew

Monitor Production Line, Lead Smart Manufacture
HIWIN i4.0BS® is the first intelligent 4.0 ballscrew in the world. It combines a multifunction sensor to detect vibration and temperature with professional algorithm. Users can monitor the status of each machine in real time from the APP to arrange maintenance schedule. It can avoid machines’ unexpected shutdown, and achieve high machine utilization, energy saving and environmental protection.

Semiconductor Equipment Front End Module

HIWIN Equipment Front End Module (EFEM) is a complete automation system. Through vertical integration, with the self-developed control system, HIWIN provides customer-customized services for different process applications. HIWIN EFEM offers flexible options for Wafer ID reading, cassette RFID sensing, wafer protrusion sensing, wafer contour detection, FOUP presence detection, etc. EFEM working with wafer robots, together, make the equipment and process are more efficient and competitive.

Ball Spline

HIWIN ball splines are rolling guide components consisting of a spline nut, a spline shaft, steel balls, and a retainer. The steel balls roll in an infinite cycle between the spline nut and the spline shaft allowing the nut to move in a linear motion along the shaft with high precision. The steel balls in the ball splines are structured with angular contact to withstand radial and torsional loads.

The optimized design of the retainer enables guidance with high speed and high acceleration. In addition, the encapsulation of the ball by the retainer makes it possible to withdraw the spline nut from the spline shaft without the balls falling out.

Single-Axis Robot

The HIWIN Single-Axis Robot module utilizes professional standard manufacturing technology developed over the years, with the ballscrew and magnetic slide design module developed and produced by ourselves, HIWIN itis applicable to all types of automation equipment due to its features of easy installation, small size, high-precision and various specifications.

Bearings

- Ballscrew Bearing
- Crossed Roller Bearing
- Support Unit

Torque Motor Rotary Table

HIWIN Torque Motor Rotary Table (TMRT) uses a water-cooled direct-drive torque motor, built-in high-rigidity and high-precision bearings, absolute angle encoders and powerful brakes system. Compared with mechanical indexing table, TMRT has high speed and high torque characteristics, suitable for the needs of various machining equipment.

Different from the mechanical indexing plate, HIWIN Torque Motor Rotary Table has no backlash in the machining process due to the removal of the mechanical transmission structure, thus improves the stability of the machining accuracy, which is different from the mechanical indexing table. Through the installation of HIWIN Torque Motor Rotary Table, the original machining equipment is upgraded to 3+1 axis, 4 axis or 5 axis to achieve one-time clamping processing, improve processing efficiency and increase production capacity.

DATORKER® Strain Wave Gear

HIWIN DATORKER® (DT) – Strain Wave Gear has the characteristics of high precision, high efficiency, high torsional rigidity and low starting torque. It is widely used in robots, automation equipment, semiconductor equipment, machine tools and other industries.

HIWIN has developed various specifications and reduction ratios to provide customers with wide range of choice.

HIWIN is able to provide customized services to meet customers' various design and requirement.

Multi-Axis Robot

A compact and agile jointed-arm robot with high degrees of freedom to perform complex jobs such as dirty, difficult and dangerous jobs to save human labor. Provide best functions for workpiece manipulating, precise assembly, complex machining and inspection.

Linear Guideway

A linear guideway allows a type of linear motion that utilizes rolling elements such as balls or rollers. By using re-circulating rolling elements between the rail and the block, a linear guideway can achieve high precision linear motion.

Advantages and Features of HIWIN Linear Guideways：high positional accuracy, long life with high motion accuracy, High speed motion is possible with a low driving force, equal loading capacity in all directions, easy installation, easy lubrication, interchangeability.

Ballscrew

HIWIN precision Ballscrew provide the most smooth and accurate movement, together with low drive torque, high stiffness and quiet motion with predictable lengthened service life. HIWIN rolled Ballscrew also provide smooth movement and long life for general applications with less precision in lower price. HIWIN has modern facilities, highly skilled engineers, quality manufacturing and assembly processes, and uses quality materials to meet your special requirements.

Vibratory finishing machine (35 litres) with trolley GMT35

The preferred choice for deburring turned and milled parts and 3D-printed workpieces. Suitable for metals and plastics. This machine can also handle the subsequent steps of polishing and cleaning.
- Powerful motor.
- Steel trough (35 l) with 15-mm polyurethane lining.
- Integrated separating station for automated separation of workpiece and grinding medium.
- Closed water circuit with wastewater treatment.
- Controlled via touch screen.
- Individual processing steps can be programmed.
- Machine with soundproof cover and lid.
- Rollers on the underside for easy transportation.

Tool24 PickOne – master system

- Cabinet housing internal load capacity: 1,000
- Hoffmann perforated panel grid interval: 9×9
- Colour selection: RAL 9002, 7035, 7005, 7016, 6011, 5018, 5012, 5011, 5005, 3003

Roller cabinet with drawers 75 kg 885/5

- Drawer/pull-out shelf load capacity: 75
- Drawer runner extension (partial/full extension): 100
- Drawer runner extension: Anti-tilt lock
- Individual drawer release system: One-hand
- Height adjustment interval: 25

Vario workbench with drawer casing 24G, height 950 mm, Beech marine ply worktop 2000/6 mm

- Design version: Steel hollow section construction
- Workbench height: 950
- Drawer/pull-out shelf load capacity: 75
- Workbench/desk load capacity - maximum distributed load (on wood): 800
- Insert thickness: 50

Base cabinet with Viewing window swing doors 2000 mm

- Shelf load capacity / maximum distributed shelf load (on metal): 100
- Cabinet housing internal load capacity: 1,000
- Door opening angle: 250
- Height adjustment interval: 25
- Cylinder lock: modular barrel

Tool24 Locker – extension system 450/10

- Hoffmann perforated panel grid interval: 9×9
- Colour selection: RAL 9002, 7035, 7005, 7016, 6011, 5018, 5012, 5011, 5005, 3003

Tool24 Smartline – cabinet system including dividing material S11M-EN

- Drawer runner extension: Anti-tilt lock
- Colour selection: RAL 9002, 7035, 7005, 7016, 6011, 5018, 5012, 5011, 5005, 3003
- Interface: HCS (Hoffmann Group Connected Suite)

ToolTruck mobile workbench with full extension drawers for L-BOXX® 10

- Drawer/pull-out shelf load capacity: 40
- Drawer runner extension (partial/full extension): 100
- Drawer runner extension: Anti-tilt lock
- Individual drawer release system: One-hand
- Hoffmann perforated panel grid interval: 9×9

HowToRobot – A One Stop Platform for Automation

HP Jet Fusion 5420W solution

HP Jet Fusion 5420W Industrial 3D Printing Solution

Expand your offering with quality white applications using HP's robust, manufacturing-ready industrial 3D printer.

https://www.hp.com/us-en/printers/3d-printers/products/jet-fusion-5420w.html

HP 5600 series

HP Jet Fusion 5600 Series Industrial 3D Printing Solution
Enhance your manufacturing capabilities and optimize applications for flexible production at scale.
- Gain process flexibility to enhance applications
- Save time and money with predictable manufacturing
- Grow your business by scaling AM production

HP Jet Fusion 5200 Series

HP Jet Fusion 5200 Series Industrial
3D Printing Solution.

Drive new growth and expand into volume production with HP's robust, manufacturing-ready industrial 3D printing solution.

HP 5600 series

HP Jet Fusion 5200 Solution

Machined Parts

The installed machine base and the highly skilled work force gives HRS the capability to produce machined parts for customers offering a one-stop shop.

Worms and wormwheels
Safety nut assemblies
Wear strips
Turned parts
Shafts and splines
Machining center parts

Gears

We manufacture a wide array of gear types and gear forms and can provide gear design services as well.

Nuts/Power Nut Products

HRS supplies power nut products that match precisely with our lead and power screws creating an integrated system from a single source supplier. HRS can work with the client to customize the screw and power nut configuration to perform as required and desired for peak performance in the client specific application.

Lead Screws

HRS manufactures all types of screws, using performance guaranteed materials and offers unique solutions to power transmission problems. All screws are cut from performance guaranteed materials, are subject to stringent quality controls, and are cut rather than rolled resulting in:

1. Greater accuracy
2. Precision fit with mating nuts
3. Thread is concentric with major diameter
4. Superior control of cumulative pitch accuracy

Pinions

HRS supplies gear pinions to mate precisely with our gear racks creating an integrated system from a single source supply. HRS can work with the client to customize the rack and pinion configuration to perform as required and desired for peak performance in the client specific application.

Precision Gear Rack

At HRS, gear rack cutting is a core manufacturing capability. We produce both metric module and imperial pitch gear racks for linear motion systems used in demanding industrial environments.

Each rack is produced with precision to ensure smooth motion, long service life, and reliable positioning. We collaborate closely with engineers and OEMs to guarantee compatibility with their systems and requirements.

Accreditations:
ISO 9001:2015

We supply gear racks to the UK, Europe, and North America, supporting industries such as construction, automation, heavy machinery, and renewable energy.

X3015 : Compact Laser Cutting with Powerful Performance

The X3015 is a compact sheet laser cutting solution designed for users who require high cutting efficiency in limited spaces. With its all-in-one structure and flexible layout, the X3015 occupies significantly less floor space and can be installed quickly, making it an ideal choice for laboratories, R&D centers, and small-sized metal fabrication workshops.
Despite its compact footprint, the X3015 delivers impressive cutting performance. Equipped with a high-dynamic motion system, it achieves linkage speeds of up to 150 m/min and acceleration of 1.5G, enabling fast and precise cutting across a wide range of sheet metal applications. Advanced One-Stroke Fly Cutting technology minimizes pauses between cutting paths, ensuring smooth, continuous processing even for complex geometries.
Operational flexibility is enhanced by the one-click switch between full and half pull-out worktable modes. The synchronized bottom support allows the worktable to extend or retract effortlessly, improving material handling while adapting to different workspace layouts.
Designed with safety and environmental performance in mind, the X3015 features a dynamic exhaust dust removal system that follows the cutting path to efficiently extract smoke and dust. This creates a cleaner, safer working environment while supporting sustainable production—proving that compact design can still deliver high efficiency, safety, and reliability.

G3015H : Advanced High-Power 2D laser cutting for Productivity and Versatility

The G3015H is HSG’s flagship high-power sheet laser cutting solution, engineered for manufacturers who demand extreme productivity, precision, and versatility. By combining ultra-high dynamics with laser power up to 30 kW, the G3015H sets a new benchmark for high-volume and heavy-duty metal processing.
Equipped with a high dynamic motion system delivering acceleration up to 4G, the G3015H achieves exceptional speed and stability even during high-speed operation. Premium drive components and a reinforced welded frame provide outstanding rigidity, enabling rapid positioning and smooth contouring without sacrificing accuracy. Compared to conventional high-power systems, the G3015H delivers significantly faster cutting speeds while improving overall gas efficiency—maximizing throughput in demanding production environments.
In high-power applications, the G3015H excels at thick-plate cutting, delivering consistent edge quality and stable processing across a wide range of materials. Advanced smart piercing technologies and adaptive beam control optimize cutting performance for both thin and thick materials, reducing slag formation and minimizing secondary processing.
The G3015H is powered by HSG’s Alpha T Plus bus control system, featuring an intuitive touchscreen interface and streamlined operation. Minimal training is required, allowing operators to achieve high productivity quickly. With optional integration into Store Pro automation solutions, the G3015H offers a scalable path toward higher equipment utilization and efficient, continuous production.

GH Series High-performance Sheet Laser Cutting Machine

GH series is characterized by the highly dynamic performance, creating high-efficiency sheet processing easily. Equipped with intelligent bus control system, GH series can make users enjoy strong and multi-functional operations. Upgraded configurations support users for wonderful sheet processing experiences and efficient production.
Super Dynamic Performance
Intelligent Bus Control System
Heat Protection Without Heat Damage Fear
High-precision Transmission System
Upgraded Matrix Machine Bed with Level-up Rigidity

X3015 : Compact Laser Cutting with Powerful Performance

The X3015 is a compact sheet laser cutting solution designed for users who require high cutting efficiency in limited spaces. With its all-in-one structure and flexible layout, the X3015 occupies significantly less floor space and can be installed quickly, making it an ideal choice for laboratories, R&D centers, and small-sized metal fabrication workshops.
Despite its compact footprint, the X3015 delivers impressive cutting performance. Equipped with a high-dynamic motion system, it achieves linkage speeds of up to 150 m/min and acceleration of 1.5G, enabling fast and precise cutting across a wide range of sheet metal applications. Advanced One-Stroke Fly Cutting technology minimizes pauses between cutting paths, ensuring smooth, continuous processing even for complex geometries.
Operational flexibility is enhanced by the one-click switch between full and half pull-out worktable modes. The synchronized bottom support allows the worktable to extend or retract effortlessly, improving material handling while adapting to different workspace layouts.
Designed with safety and environmental performance in mind, the X3015 features a dynamic exhaust dust removal system that follows the cutting path to efficiently extract smoke and dust. This creates a cleaner, safer working environment while supporting sustainable production—proving that compact design can still deliver high efficiency, safety, and reliability.

G3015H : Advanced High-Power 2D laser cutting for Productivity and Versatility

The G3015H is HSG’s flagship high-power sheet laser cutting solution, engineered for manufacturers who demand extreme productivity, precision, and versatility. By combining ultra-high dynamics with laser power up to 30 kW, the G3015H sets a new benchmark for high-volume and heavy-duty metal processing.
Equipped with a high dynamic motion system delivering acceleration up to 4G, the G3015H achieves exceptional speed and stability even during high-speed operation. Premium drive components and a reinforced welded frame provide outstanding rigidity, enabling rapid positioning and smooth contouring without sacrificing accuracy. Compared to conventional high-power systems, the G3015H delivers significantly faster cutting speeds while improving overall gas efficiency—maximizing throughput in demanding production environments.
In high-power applications, the G3015H excels at thick-plate cutting, delivering consistent edge quality and stable processing across a wide range of materials. Advanced smart piercing technologies and adaptive beam control optimize cutting performance for both thin and thick materials, reducing slag formation and minimizing secondary processing.
The G3015H is powered by HSG’s Alpha T Plus bus control system, featuring an intuitive touchscreen interface and streamlined operation. Minimal training is required, allowing operators to achieve high productivity quickly. With optional integration into Store Pro automation solutions, the G3015H offers a scalable path toward higher equipment utilization and efficient, continuous production.

Rotary-Pro Parts Accumulator

The Rotary-Pro is a stand-alone parts handling system designed to safely convey and collect finished components from all types of CNC machines, requiring no machine interface or specialist training to operate.

Electrical power can be supplied from an independent supply or from any Hydrafeed Barfeed system.

Large volumes of components can be stored safely with no damage to parts allowing CNC machines to run unattended for prolonged periods.

The Rotary-Pro “soft handles” finished components on high lubricity plastic to minimize friction and keep parts safe from damage.

MSV65 Short Magazine Barfeed

A full servo-driven Barfeed, the MSV65 eliminates the need for compressed air.

Unrivalled performance and accuracy combined with a user-friendly set-up make the MSV65 the ideal solution for increasing productivity from your machine tool.

Features:
Standard bar diameter range 5-65mm.
The bars are soft-loaded from the storage magazine onto rollers, providing minimum friction and allowing bars of an irregular shape or with a rough surface to be loaded.
An easy-to-use HMI screen allows the operator to enter workpiece details. The programmed information is stored, resulting in minimum changeover time between saved jobs.
For shaft work, the pushrod may be utilised as a backstop.
The accuracy of the bar positioning is achieved by the precision ground servo-driven ball screw.
The bar storage magazine has a standard depth of 600mm with simple gradient adjustment.
The MSV65 is fixed to floor-mounted sliding rails in the X axis providing safe and easy access to the rear of the machine tool.

Optional Extras:
For bars longer than the lathe headstock a Bar Support Unit will be required. This safely supports bar lengths outside the confines of the lathe headstock.
The bar storage magazine can be fitted to the front of the Barfeed.
Increased bar storage magazines can be provided.
The floor-mounted sliding rails can be provided with Z-axis retraction.

Return Speed Shaft Unloading System

Making quick work of unloading

Our Shaft Unloading System, the Return Speed, is a workpiece unloader, suitable for both fixed and sliding-head type machines. It can unload shafts from 200mm to 1.5m long in under 30 seconds. This fast and reliable unloader has a working range of minimum diameter 10mm up to a maximum of 80mm. The parts are soft-handled and deposited onto a bar storage magazine. The bar storage magazine has the facility to unload up to 5 rows of components depending on the length of the components.

Features

Easy to programme through a PLC touch screen.
Floor mounted sliding rails.
Soft-handling of components.
Depth of bar storage magazine 800mm.
Polyzene self-adjusting guide channel

Infinity Full-Length Magazine Barfeed

The Infinity full-length magazine Barfeed has a standard bar diameter range from 3mm to 45mm and is suitable for sliding-head CNC turning centres.

The operator can change the bar diameter setting in seconds using the touchscreen PLC. This reliable and robust Barfeed features an innovative self-adjusting guide channel which means that no additional guide channel sets are required.

Features:
The Infinity Barfeed is managed via the touchscreen PLC allowing operators to change bar diameters in seconds.

The self-adjusting guide channel supports the full range of bar diameters. Thanks to both this self-adjusting guide channel and the robust build of the Barfeed, bars are safely supported with no compromise to the RPM of the lathe.

The Infinity offers two standard options for remnant management. Either rear extraction back into the Barfeed or front ejection into the CNC turning centre.

A single-level magazine with 265mm of storage capacity.

Optional Extras:
The Infinity can be equipped with optional bar storage systems. Choose from a multi-level magazine with 4 different levels each with 250mm capacity, or a ratchet magazine for smaller diameter bar diameters of 6mm and under.

An additional clamping system can be installed, providing additional support.

The Infinity can be equipped with dedicated steady blocks. This provides additional support for hexagon and square bars.

X-Files-s Full-Length Magazine Barfeed

A full-length magazine Barfeed, the X-Files-s is suitable for fixed-head CNC turning centres and has a standard bar diameter range from 10mm to 100mm.

The operator can change the bar diameter setting in seconds using the touchscreen PLC. This reliable and robust Barfeed features an innovative self-adjusting guide channel which means that no additional guide channel sets are required.

Features:
The X-Files-s Barfeed is managed via the touchscreen PLC allowing operators to change bar diameters in seconds.

The self-adjusting guide channel supports the full range of bar diameters. Thanks to both this self-adjusting guide channel and the robust build of the Barfeed, bars are safely supported with no compromise to the RPM of the lathe.

The X-Files-s offers maximum stability for bars running at a high RPM and outperforms any comparable Barfeed.

The Barfeed is fitted with a floor-mounted sliding rail that provides Z-axis movement of 600mm for ease of access to the rear of the machine tool.

The X-Files-s offers two standard options for remnant management. Either rear extraction back into the Barfeed or front ejection into the CNC turning centre.

Optional extras:
The X-Files-s can be equipped with 3 different floor loading bar storage systems. Choose from a multi-level magazine with 3 different levels each with 300mm capacity, or 700mm deep floor-mounted magazine with access for forklift loading. The third option is an extra-large capacity bundle loader with a maximum load of 2 tonnes of material.

Front-mounted external steady block can be fitted to provide additional support for bars 20mm and under.
The X-Files-s can be equipped with dedicated steady blocks. This provides additional support for hexagon and square bars.

Coby CNC Cobot

Hydrafeed's first collaborative robot; the technology behind Coby comes from RoboJob. Combining great operational versatility with user-friendly software that allows an uncomplicated user experience.

With Coby you can load and unload round discs, hexagonal pieces and and square or rectangular blocks, so Coby can automate both turning and milling machines. The maximum lifting capacity of Coby is 5kg, so it is perfect for lighter work. If your Coby has a single gripper, then the cobot will be able to carry a workpiece of up to 5kg. If your Coby has a double gripper, then he can carry 2 workpieces of up to 2.5kg each.

You can load plastic workpieces on to the cobot by regulating Coby's gripping pressure to prevent the gripper jaws from leaving marks on softer materials.

Minimum and maximum dimensions of the workpieces that you can automate with Coby are:

With a 3-point gripper:
Diameter min 25mm - max 200mm, depending on gripper fingers' range
Max height: 200mm

With a 2-point gripper:
Length/width: min 8mm - max 120mm (outer clamping), depending on gripper fingers' range
Max height: 150mm

Hydrafeed RoboJob Mill-Assist

The Mill-Assist Essential
Experience the Advantage of an Automation Machine

Set to work immediately with the Mill-Assist Essential. It’s easy to use and has been designed to specifically load and unload small runs and/or small workpieces. The fixed table allows you to configure workpiece supports or grid plates.

The user-friendly interface allows you to automate your small runs in minutes. It features intuitive, graphic software that guides you step by step through the process when you’re setting up your workpiece.

The Mill-Assist Essential is available in either the integrated or separated option. For the integrated model, it is easily moveable and offers automation on one fixed frame. For the separated model, the key elements are physically separated from each other.

For small runs.
For workpieces up to 400mm.
Fixed table with limited stacking height.
Robot payload from 25kg or more.
Integrated or separated.

Hydrafeed RoboJob Tower

The next step for automated machines, the RoboJob Tower was created to produce the largest possible storage capacity within a small surface area. It’s possible to change between different types of workpieces automatically. The Tower caters for both high-mix, low volume and low-mix, high volume. It’s possible for your CNC machine to work for several days unmanned.

The RoboJob Tower loads and unloads your workpieces and pallets, along with all necessary clamping devices (vices and jaws).

Choose from 2 standard versions which can be supplied with various options and modular extensions.

If you want to discuss the additional options and modular extensions that are available, contact the Hydrafeed team. You will need additional software and/or hardware, so it’s best to talk to one of our experts about what you require.

Return Speed Shaft Unloading System

Making quick work of unloading

Our Shaft Unloading System, the Return Speed, is a workpiece unloader, suitable for both fixed and sliding-head type machines. It can unload shafts from 200mm to 1.5m long in under 30 seconds. This fast and reliable unloader has a working range of minimum diameter 10mm up to a maximum of 80mm. The parts are soft-handled and deposited onto a bar storage magazine. The bar storage magazine has the facility to unload up to 5 rows of components depending on the length of the components.

Features
Easy to programme through a PLC touch screen.
Floor mounted sliding rails.
Soft-handling of components.
Depth of bar storage magazine 800mm.
Polyzene self-adjusting guide channel

Hydrafeed RoboJob Mill-Assist

You can choose from either integrated or separated automation in the Mill-Assist range

For integrated models, the automation is built on one fixed frame. This means you can easily remove the robot when maintenance to the CNC machine is needed. What’s more, you can also effortlessly move your automation system from one CNC machine to another.

For separated models, the key elements are constructed separately from each other. This means that you’ll have separate pick-and-place units and robot positions, which allows for flexibility in floorplan design. Separated robots are perfect for larger machining centres as the automation will not block across to your machine’s tool magazine, for example.

Hydrafeed RoboJob Tower

The next step for automated machines, the Tower was created to produce the largest possible storage capacity within a small surface area. It’s possible to change between different types of workpieces automatically. The Tower caters for both high-mix, low volume and low-mix, high volume. It’s possible for your CNC machine to work for several days unmanned.

The RoboJob Tower loads and unloads your workpieces and pallets, along with all necessary clamping devices (vices and jaws).

Choose from 2 standard versions which can be supplied with various options and modular extensions.

If you want to discuss the additional options and modular extensions that are available, contact the Hydrafeed team. You will need additional software and/or hardware, so it’s best to talk to one of our experts about what you require.

Rotary-Pro Parts Accumulator

Rotary-Pro

The Rotary-Pro is a stand-alone parts handling system designed to safely convey and collect finished components from all types of CNC machines, requiring no machine interface or specialist training to operate.

Electrical power can be supplied from an independent supply or from any Hydrafeed Barfeed system.

Large volumes of components can be stored safely with no damage to parts allowing CNC machines to run unattended for prolonged periods.

The Rotary-Pro “soft handles” finished components on high lubricity plastic to minimize friction and keep parts safe from damage.

Return Speed Shaft Unloading System

Making quick work of unloading

Our Shaft Unloading System, the Return Speed, is a workpiece unloader, suitable for both fixed and sliding-head type machines. It can unload shafts from 200mm to 1.5m long in under 30 seconds.

This fast and reliable unloader has a working range of minimum diameter 10mm up to a maximum of 80mm.

The parts are soft-handled and deposited onto a bar storage magazine.

The bar storage magazine has the facility to unload up to 5 rows of components depending on the length of the components.

Infinity Full-Length Magazine Barfeed

The Infinity full-length magazine Barfeed has a standard bar diameter range from 3mm to 45mm and is suitable for sliding-head CNC turning centres.

The operator can change the bar diameter setting in seconds using the touchscreen PLC. This reliable and robust Barfeed features an innovative self-adjusting guide channel which means that no additional guide channel sets are required.

Flexiband Abrasive Belt Machine

Hydrafeed offer a range of Abrasive Belt Machines to suit most deburring, finishing or metal removal applications in a modern machine shop environment.

All Abrasive Belt Machines are supplied as a standalone item or with peripheral equipment such as a dust extractor, contact wheel or pedestal.

MSV65 Short Magazine Barfeed

The MSV65 is a full servo-driven Barfeed eliminating the need for compressed air.

Unrivalled performance and accuracy, with a user-friendly set-up, providing the solution for increased productivity from your machine tool.

X-Files-s Full-Length Magazine Barfeed

The X-Files-s full-length magazine Barfeed is suitable for fixed-head CNC turning centres and has a standard bar diameter range from 10mm to 100mm.

Using the touchscreen PLC, operators can change bar diameter settings in seconds.

An innovative self-adjusting guide channel means that no additional guide channel sets are required.

Hydrafeed RoboJob Robotic Automation

Why Choose Automation?
Automation is becoming an indisputable necessity for our industry. The UK’s uptake of robotic automation lags behind many other developed countries. With a lack a skilled workers in the industry, automating your processes is becoming critical.

It is important that any automation you choose is:

Capable of high-mix low volume
Easy to set and operate
Flexible
Reliable
Well-supported

Our robotic automation offers all of these, and we ensure the process of implementing automation is easy for you from the minute you partner with us.

Hockh Compact

The Compact cleaning system - MULTICLEAN-LC-III
The most important advantages of MULTICLEAN-LC-III:

Very compact external dimensions.
Spray or immersion treatment with full-flow filtration, pressure flooding, and ultrasound; vapor degreasing as final step.
2 tank variants for optional anti-corrosion protection.
Integrated bath maintenance by distillation with automatic waste oil removal.
Suitable for intermediate cleaning or high-quality cleaning at the end of the operation depending on the equipment.

EVT Nano

EVT Nano
Cleaning and degreasing system for small to medium sized parts
The compact and inexpensive NANO type systems are used for cleaning and degreasing small to medium-sized parts and throughputs. The flexibility of the cleaning process and the installation location enable the NANO to be used across industries.

EVT Gigant

Cleaning systems for large weights and/or volumes.
The GIGANT lives up to its name: these cleaning systems are used for large weights and/or volumes. For example, when cleaning ship or aircraft parts. Its chamber volume is truly gigantic, but its space requirements are more flexible than one would assume.

Hockh Aqueous

Standard to Special range of water based cleaning systems.
Precision cleaning using aqueous agents.

The aqueous MULTICLEAN system includes four different series – according to the needs of the different applications.

EVT Vario

Compact cleaning and degreasing systems designed for solvent-based cleaning processes
The compact cleaning and degreasing systems in the VARIO series are designed for solvent-based cleaning processes . You are absolutely flexible when it comes to the choice of medium as well as basket systems and sizes. We would be happy to discuss with you personally which cleaning process and other configuration you need.

Hockh Solvent

Standard Compact to large solvent cleaning rage.
Cleaning with solvents under full vacuum: The ideal solution for turning, punched, or formed parts that are covered with a high volume of oil or grease.

The MULTICLEAN systems using solvents under full vacuum are available in three different series – according to the needs of the different applications.

EVT Vario

Welcome to EVT!

EVT Eiberger Verfahrenstechnik GmbH is a medium-sized family business based in Sternenfels, Baden-Württemberg, Germany. We have been designing and manufacturing degreasing and cleaning plants for industrial parts cleaning since 1994.

EVT systems solve cleaning tasks, which are sometimes very complex, throughout the world, making significant contributions to a reliable and sustainable production result.

Our guiding principle “Made to measure and need” is taken literally by us, because detailed consultation and the design of a new plant tailored to the customer’s needs are fundamental for the long-term satisfaction of our customers.

We look forward to new challenges and will be happy to advise you on the implementation of your cleaning requirements.

Harald Eiberger & Costa Burkhardt
Managing Directors
EVT Eiberger Verfahrenstechnik GmbH

Hockh

3 PRINCIPLES OF OUR SUCCESS
A good business deal always has two partners.
Quality is when the customer returns, not the product.
We are a team – and together we are strong.

Cleaning animation

Our modern cleaning and degreasing systems are highly efficient and in most cases only use a single 205 Litre drum of cleaning solution per year. With the advanced process capabilities, the closed loop system recycles nearly all the solution so it can be reused continuously. This is by far the best sustainable method for cleaning your parts today. Please contact us if you want to know more about our products.

Hockh Brochure

Höckh Metall-Reinigungsanlagen GmbH is an owner-managed, medium-sized family business in its second generation. Our expertise and top quality system technology are cherished by users from all over the world. Höckh MULTICLEAN cleaning systems are currently integrated in the process chain of many industrial productions around the world.

Here, tailored parts cleaning systems can hardly be standardized. We are therefore tasked with developing and manufacturing a fitting solution depending on your requirements. Simply contact our specialists and we will gladly find the excellent solution for your application.

EVT Brochure

EVT Eiberger Verfahrenstechnik GmbH is a medium-sized family business based in Sternenfels, Baden-Württemberg, Germany. We have been designing and manufacturing degreasing and cleaning plants for industrial parts cleaning since 1994.

EVT systems solve cleaning tasks, which are sometimes very complex, throughout the world, making significant contributions to a reliable and sustainable production result.

Our guiding principle “Made to measure and need” is taken literally by us, because detailed consultation and the design of a new plant tailored to the customer’s needs are fundamental for the long-term satisfaction of our customers.

We look forward to new challenges and will be happy to advise you on the implementation of your cleaning requirements.

Harald Eiberger & Costa Burkhardt
Managing Directors
EVT Eiberger Verfahrenstechnik GmbH
